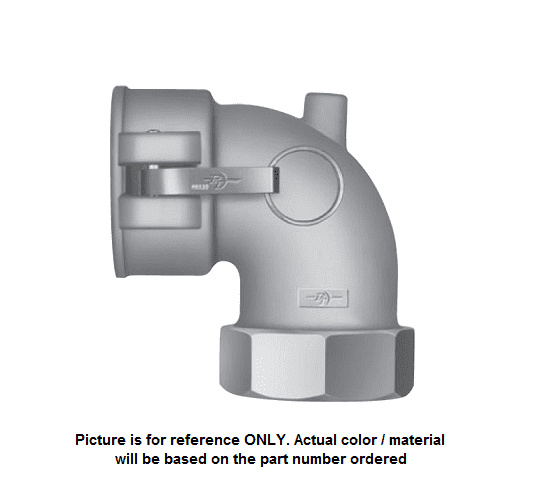

6048000060 (30LD) by PT-Coupling | 90 Degree Elbow | 3" Coupler x 3" Female NPT | Aluminum/HB | Buna-N Seal

6048000060 (30LD) by PT-Coupling | 90 Degree Elbow | 3" Coupler x 3" Female NPT | Aluminum/HB | Buna-N Seal

Save $10.06 Save $10.06
$90.50
$90.50 - $90.50
$90.50
$80.44
$80.44 - $80.44
$80.44
Specifications for Variant SKU: 6048000060 PT-Coupling
Shape (Orientation): 90 Degree Elbow
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 3in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - 45 & 90 Deg. Fittings - Part LD - Coupler x Female NPT Thread - Aluminum/HB
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Orientation Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10LD 6048000062 90° 1" 1" 250 PSI
15LD 604800063 90° 1-1/2" 1-1/2" 250 PSI
20LD 6048000005 90° 2" 2" 250 PSI
25LD 6048000103 90° 2-1/2" 2-1/2" 200 PSI
30LD 6048000060 90° 3" 3" 200 PSI
40LD 6048000061 90° 4" 4" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
