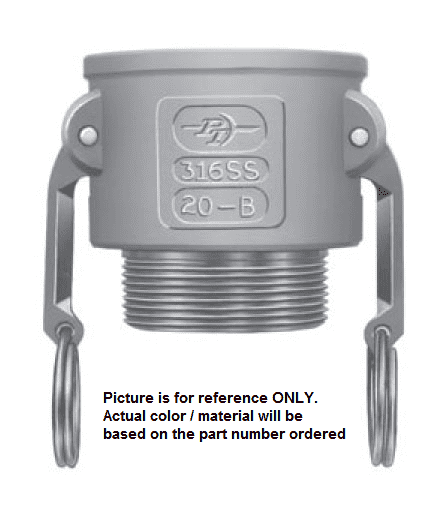

70383025 (30X25BFH) by PT-Coupling | Reducing 3" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Hard Coat Aluminum | Buna-N Seal

70383025 (30X25BFH) by PT-Coupling | Reducing 3" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Hard Coat Aluminum | Buna-N Seal

Save $11.72 Save $11.72
$105.45
$105.45 - $105.45
$105.45
$93.73
$93.73 - $93.73
$93.73
Specifications for Variant SKU: 70383025 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 2-1/2in Male NST
Material(s): Hard Coat Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part BFH - Coupler x Male Fire Hose (NH) Thread - Hard Coat Aluminum
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Comes Standard with Buna N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Outside
Diameter
(B)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
25BFH 70382500 2-1/2" 2-1/2" 8.03" 3.63" 4.43" 2.18" 2.38" 200 PSI
30BFH 70383000 3" 3" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
30X25BFH 70383025 3" 2-1/2" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
