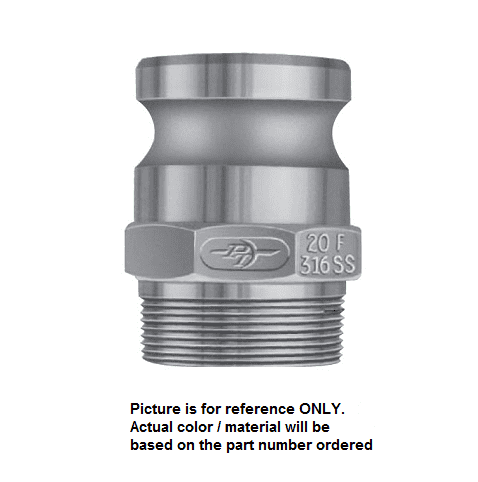

60403025 (30X25FFH) by PT-Coupling | Reducing 3" Adapter x 2-1/2" Male Fire Hose (NH) Thread | Aluminum

60403025 (30X25FFH) by PT-Coupling | Reducing 3" Adapter x 2-1/2" Male Fire Hose (NH) Thread | Aluminum

Save $6.78 Save $6.78
$60.98
$60.98 - $60.98
$60.98
$54.20
$54.20 - $54.20
$54.20
Specifications for Variant SKU: 60403025 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 2-1/2in Male NST
Material(s): Aluminum

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part FFH - Adapter x Male Fire Hose (NH) Thread - Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max.
Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15FFH 60401500 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 250 PSI
25FFH 60402500 2-1/2" 2-1/2" 4.18" 2.78" 2.14" 3.45" 0.29" 200 PSI
30FFH 60403000 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI
30X25FFH 60403025 3" 2-1/2" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
