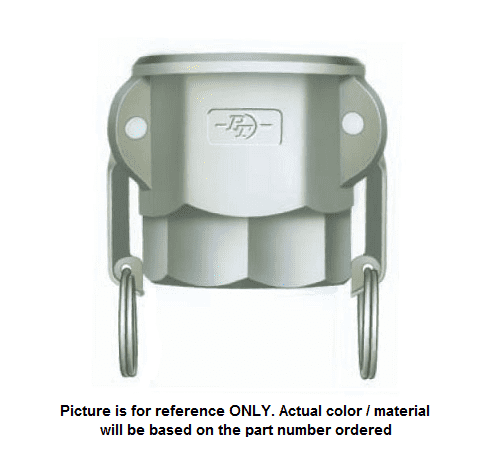

60623003 (30DWS) by PT-Coupling | 3" Coupler x Socket Weld for Pipe | Aluminum

60623003 (30DWS) by PT-Coupling | 3" Coupler x Socket Weld for Pipe | Aluminum

Save $6.64 Save $6.64
$59.77
$59.77 - $59.77
$59.77
$53.13
$53.13 - $53.13
$53.13
Specifications for Variant SKU: 60623003 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in Weld End
Material(s): Aluminum

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWS - Coupler x Socket Weld For Pipe - Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
15DWS 60621513 1-1/2" 7.16" 3.56" 1.50" 2.81" 0.50" 1.95" 250 PSI
20DWS 60622002 2" 7.54" 3.94" 1.88" 3.10" 0.70" 2.44" 250 PSI
25DWS 60622502 2-1/2" 8.03" 4.43" 2.38" 3.40" .70" 2.94" 200 PSI
30DWS 60623003 3" 9.56" 5.46" 2.88" 3.50" .70" 3.57" 200 PSI
40DWS 60624005 4" 10.66" 6.56" 3.60" 3.90" .70" 4.58" 150 PSI
50DWS 60625001 5" 11.67" 7.57" 4.50" 4.20" .90" 5.66" 75 PSI
60DWS 60626004 6" 16.26" 10.16" 5.50" 4.54" .90" 6.72" 75 PSI
80DWS 60628002 8" 18.23" 12.13" 7.50" 4.80" .90" 8.74" 50 PSI
100DWS 60629001 10" 20.66" 14.40" 9.40" 5.50" .90" 10.89" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
