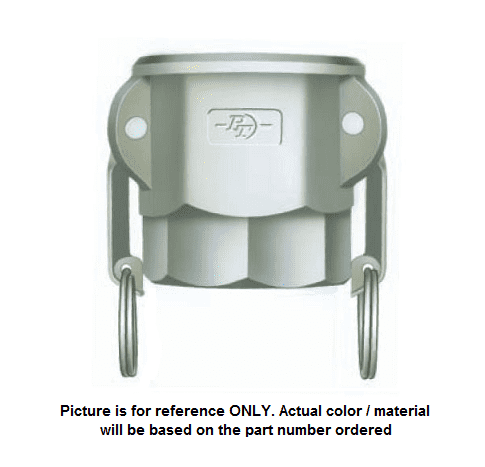

60624005 (40DWS) by PT-Coupling | 4" Coupler x Socket Weld for Pipe | Aluminum

60624005 (40DWS) by PT-Coupling | 4" Coupler x Socket Weld for Pipe | Aluminum

Save $8.01 Save $8.01
$72.10
$72.10 - $72.10
$72.10
$64.09
$64.09 - $64.09
$64.09
Specifications for Variant SKU: 60624005 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in Weld End
Material(s): Aluminum

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWS - Coupler x Socket Weld For Pipe - Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
15DWS 60621513 1-1/2" 7.16" 3.56" 1.50" 2.81" 0.50" 1.95" 250 PSI
20DWS 60622002 2" 7.54" 3.94" 1.88" 3.10" 0.70" 2.44" 250 PSI
25DWS 60622502 2-1/2" 8.03" 4.43" 2.38" 3.40" .70" 2.94" 200 PSI
30DWS 60623003 3" 9.56" 5.46" 2.88" 3.50" .70" 3.57" 200 PSI
40DWS 60624005 4" 10.66" 6.56" 3.60" 3.90" .70" 4.58" 150 PSI
50DWS 60625001 5" 11.67" 7.57" 4.50" 4.20" .90" 5.66" 75 PSI
60DWS 60626004 6" 16.26" 10.16" 5.50" 4.54" .90" 6.72" 75 PSI
80DWS 60628002 8" 18.23" 12.13" 7.50" 4.80" .90" 8.74" 50 PSI
100DWS 60629001 10" 20.66" 14.40" 9.40" 5.50" .90" 10.89" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
