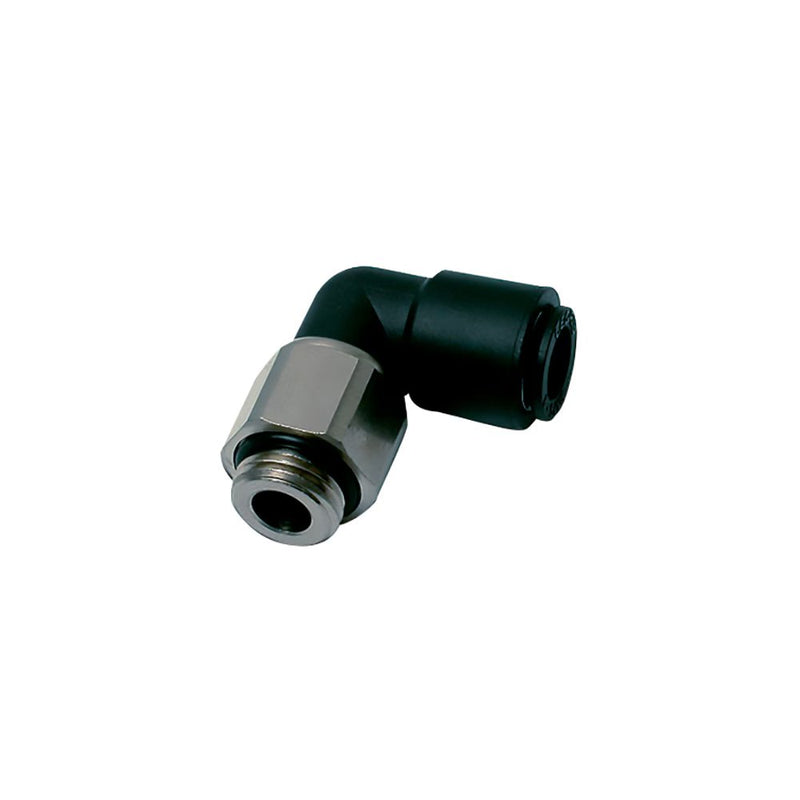

3189 12 17 by Parker | Legris Oscillating Fitting | 12 mm Tube Size x 3/8" Male BSPP Thread | 21 mm Hex | 90° Elbow | Polymer | Pack of 5

Save $23.35

$256.84

$256.84 - $256.84

$256.84

$233.49

$233.49 - $233.49

$233.49

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3189 Oscillating Elbow, Male BSPP and Metric Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 3189 12 17 Parker \| 5 \|
Series:	3189 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting) Working Temperature: -20°C to +80°C
Advantages:	Self-Sealing Fittings Prevents fluid flow when there is no tube connected Prevents incorrect assembly Oscillating Fittings Fitting swivels when cylinder is in movement : no bending of the tube High durability fitting/tube assembly
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Body: Self-sealing fitting: nickel-plated brass Oscillating fitting: Technical Polymer Adaptor: Nickel-Plated Brass Anti-friction bearings LF 3000® Components


Part Number	ØD	C	E	F	G	H	L	Kg
3189 04 19	4 mm	M5x0.8	3 mm	12 mm	11 mm	24.5 mm	17.5 mm	.012 mm
3189 04 10	4 mm	1/8"	5 mm	13 mm	11 mm	23 mm	17.5 mm	.014 mm
3189 06 19	6 mm	M5x0.8	3 mm	12 mm	14 mm	27.5 mm	20.5 mm	.017 mm
3189 06 10	6 mm	1/8"	5 mm	14 mm	14 mm	27 mm	20.5 mm	.019 mm
3189 06 13	6 mm	1/4"	5.5 mm	16 mm	14 mm	25.5 mm	20.5 mm	.023 mm
3189 08 10	8 mm	1/8"	5 mm	17 mm	16 mm	33.5 mm	23.5 mm	.034 mm
3189 08 13	8 mm	1/4"	5.5 mm	17 mm	16 mm	31 mm	23.5 mm	.032 mm
3189 08 17	8 mm	3/8"	5.5 mm	20 mm	16 mm	29.5 mm	23.5 mm	.039 mm
3189 10 13	10 mm	1/4"	5.5 mm	19 mm	19.5 mm	39 mm	29 mm	.053 mm
3189 10 17	10 mm	3/8"	5.5 mm	20 mm	19.5 mm	37 mm	29 mm	.051 mm
3189 12 13	12 mm	1/4"	5.5 mm	21 mm	22 mm	46.5 mm	33.5 mm	.073 mm
3189 12 17	12 mm	3/8"	5.5 mm	21 mm	22 mm	45.5 mm	33.5 mm	.071 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
