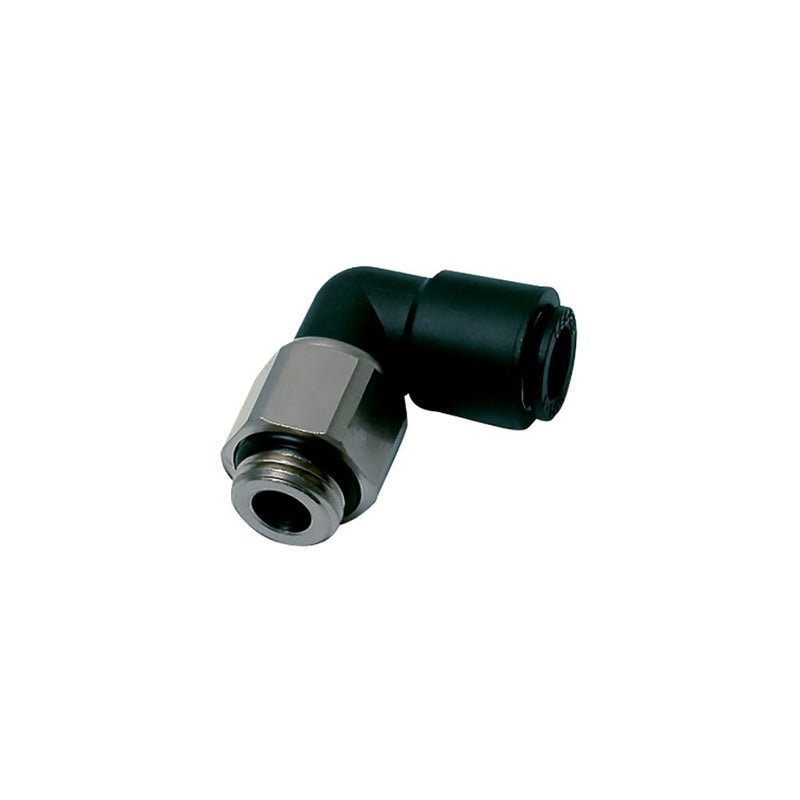

3189 08 10 by Parker | Legris Oscillating Fitting | 8 mm Tube Size x 1/8" Male BSPP Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $187.83

$469.58

$469.58 - $469.58

$469.58

$281.75

$281.75 - $281.75

$281.75

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3189 Oscillating Elbow, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3189 08 10 Parker \| 10 \|
Series:	3189 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting) Working Temperature: -20°C to +80°C
Advantages:	Self-Sealing Fittings Prevents fluid flow when there is no tube connected Prevents incorrect assembly Oscillating Fittings Fitting swivels when cylinder is in movement : no bending of the tube High durability fitting/tube assembly
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Body: Self-sealing fitting: nickel-plated brass Oscillating fitting: Technical Polymer Adaptor: Nickel-Plated Brass Anti-friction bearings LF 3000® Components


Part Number	ØD	C	E	F	G	H	L	Kg
3189 04 19	4 mm	M5x0.8	3 mm	12 mm	11 mm	24.5 mm	17.5 mm	.012 mm
3189 04 10	4 mm	1/8"	5 mm	13 mm	11 mm	23 mm	17.5 mm	.014 mm
3189 06 19	6 mm	M5x0.8	3 mm	12 mm	14 mm	27.5 mm	20.5 mm	.017 mm
3189 06 10	6 mm	1/8"	5 mm	14 mm	14 mm	27 mm	20.5 mm	.019 mm
3189 06 13	6 mm	1/4"	5.5 mm	16 mm	14 mm	25.5 mm	20.5 mm	.023 mm
3189 08 10	8 mm	1/8"	5 mm	17 mm	16 mm	33.5 mm	23.5 mm	.034 mm
3189 08 13	8 mm	1/4"	5.5 mm	17 mm	16 mm	31 mm	23.5 mm	.032 mm
3189 08 17	8 mm	3/8"	5.5 mm	20 mm	16 mm	29.5 mm	23.5 mm	.039 mm
3189 10 13	10 mm	1/4"	5.5 mm	19 mm	19.5 mm	39 mm	29 mm	.053 mm
3189 10 17	10 mm	3/8"	5.5 mm	20 mm	19.5 mm	37 mm	29 mm	.051 mm
3189 12 13	12 mm	1/4"	5.5 mm	21 mm	22 mm	46.5 mm	33.5 mm	.073 mm
3189 12 17	12 mm	3/8"	5.5 mm	21 mm	22 mm	45.5 mm	33.5 mm	.071 mm
