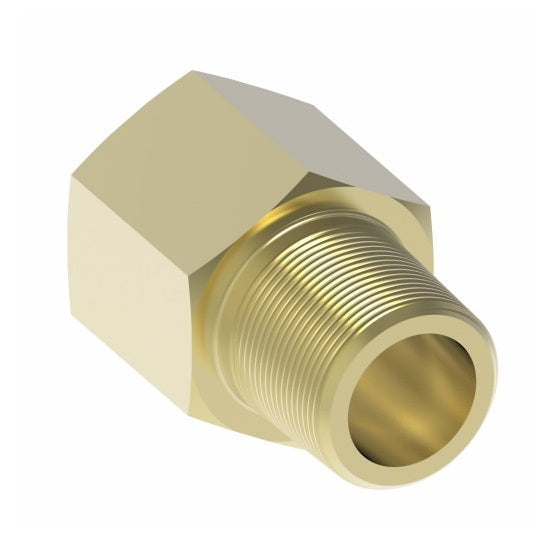

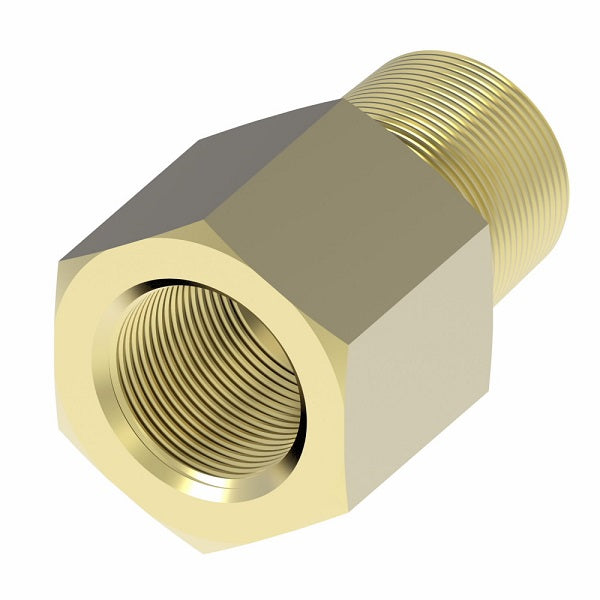

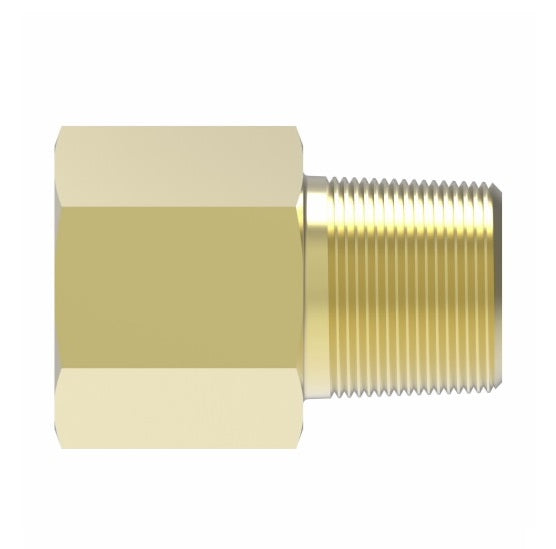

3200X12X6 by Danfoss | Pipe Adapter | 3/4" Female Pipe x 3/8" Male Pipe | Brass
3200X12X6 by Danfoss | Pipe Adapter | 3/4" Female Pipe x 3/8" Male Pipe | Brass
3200X12X6 by Danfoss | Pipe Adapter | 3/4" Female Pipe x 3/8" Male Pipe | Brass
3200X12X6 by Danfoss | Pipe Adapter | 3/4" Female Pipe x 3/8" Male Pipe | Brass

3200X12X6 by Danfoss | Pipe Adapter | 3/4" Female Pipe x 3/8" Male Pipe | Brass

$19.02 - $19.02
$19.02
$19.02 - $19.02
$19.02

Aeroquip® by Danfoss
Pipe Adapter
Specifications for Variant SKU: 3200X12X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/8in Male NPT
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130139
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe Thread Male Pipe Thread Hex
C		 D L
3200X2 3200X2Z 1/8" 1/8" 9/16" 0.219" 0.88"
3200X4X2 3200X4X2Z 1/4" 1/8" 3/4" 0.219" 1.06"
3200X4 - 1/4" 1/4" 3/4" 0.312" 1.25"
3200X6X4 3200X6X4Z 3/8" 1/4" 7/8" 0.312" 1.25"
3200X6 3200X6Z 3/8" 3/8" 7/8" 0.438" 1.25"
3200X8X6 3200X8X6Z 1/2" 3/8" 1-1/16" 0.438" 1.47"
3200X12X6 - 3/4" 3/8" 1-1/4" 0.438" 1.59"
3200X12X8 3200X12X8Z 3/4" 1/2" 1-1/4" 0.562" 1.69"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
