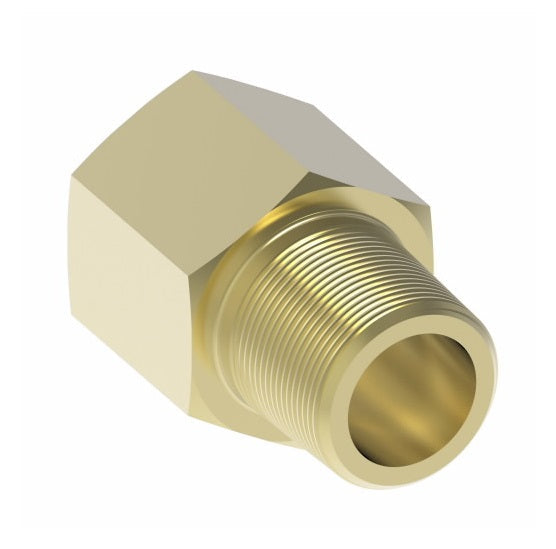

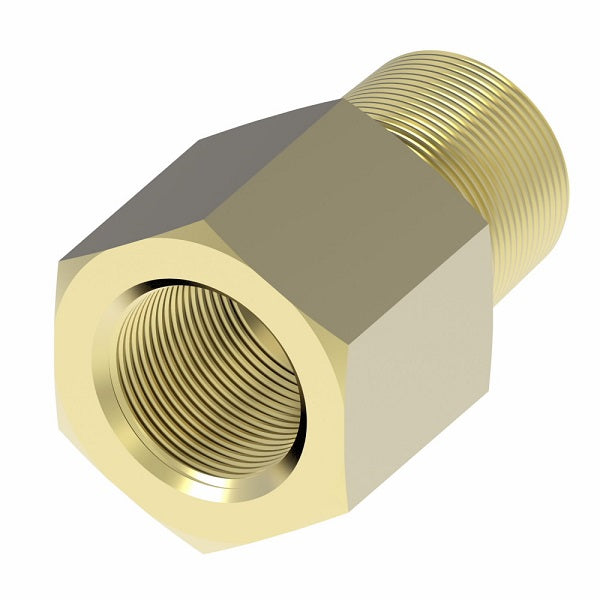

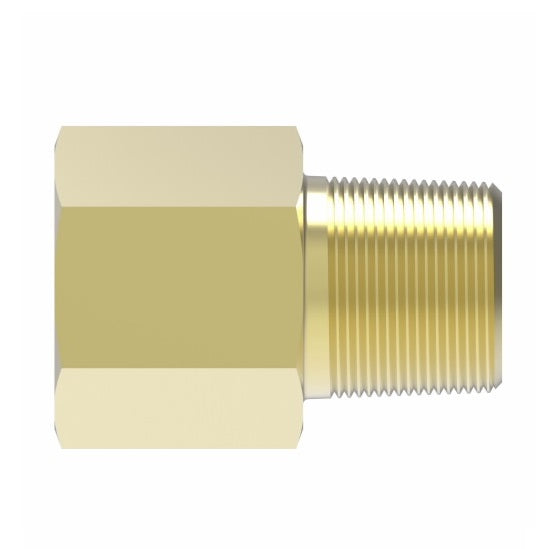

3200X4X2Z by Danfoss | Pipe Adapter (with Sealant) | 1/4" Female Pipe x 1/8" Male Pipe | Brass
3200X4X2Z by Danfoss | Pipe Adapter (with Sealant) | 1/4" Female Pipe x 1/8" Male Pipe | Brass
3200X4X2Z by Danfoss | Pipe Adapter (with Sealant) | 1/4" Female Pipe x 1/8" Male Pipe | Brass
3200X4X2Z by Danfoss | Pipe Adapter (with Sealant) | 1/4" Female Pipe x 1/8" Male Pipe | Brass

3200X4X2Z by Danfoss | Pipe Adapter (with Sealant) | 1/4" Female Pipe x 1/8" Male Pipe | Brass

$4.09 - $4.09
$4.09
$4.09 - $4.09
$4.09

Aeroquip® by Danfoss
Pipe Adapter
Specifications for Variant SKU: 3200X4X2Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/8in Male NPT
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130139
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe Thread Male Pipe Thread Hex
C		 D L
3200X2 3200X2Z 1/8" 1/8" 9/16" 0.219" 0.88"
3200X4X2 3200X4X2Z 1/4" 1/8" 3/4" 0.219" 1.06"
3200X4 - 1/4" 1/4" 3/4" 0.312" 1.25"
3200X6X4 3200X6X4Z 3/8" 1/4" 7/8" 0.312" 1.25"
3200X6 3200X6Z 3/8" 3/8" 7/8" 0.438" 1.25"
3200X8X6 3200X8X6Z 1/2" 3/8" 1-1/16" 0.438" 1.47"
3200X12X6 - 3/4" 3/8" 1-1/4" 0.438" 1.59"
3200X12X8 3200X12X8Z 3/4" 1/2" 1-1/4" 0.562" 1.69"
