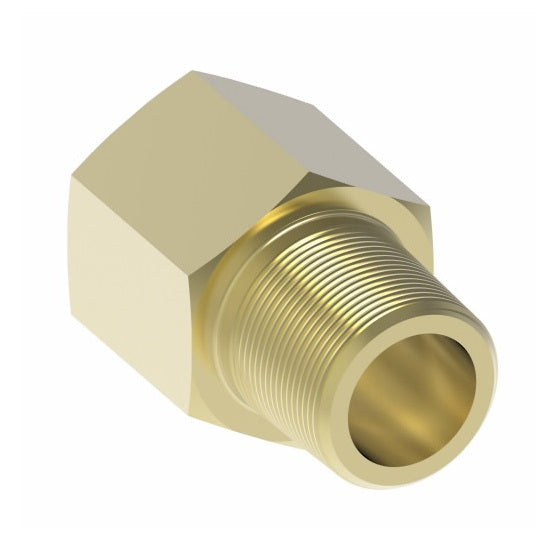

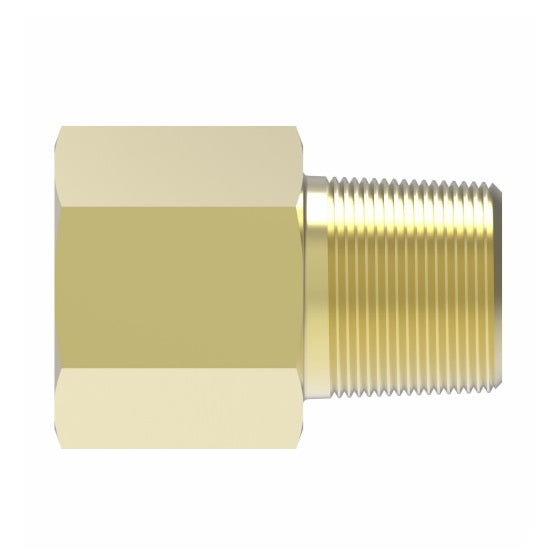

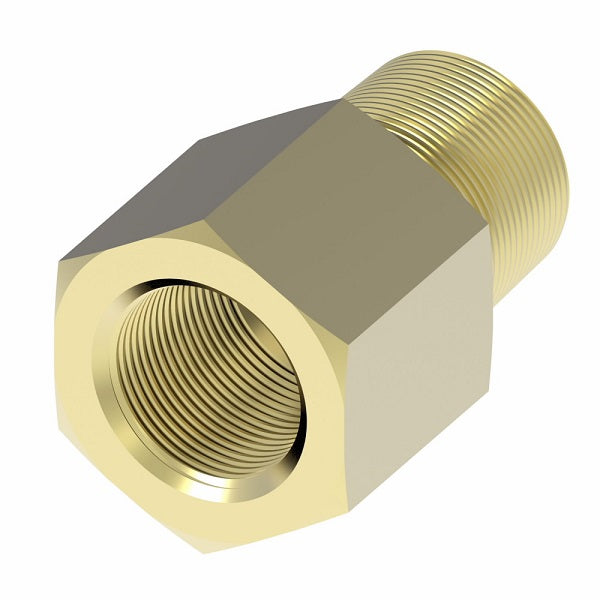

3200X6X4 by Danfoss | Pipe Adapter | 3/8" Female Pipe x 1/4" Male Pipe | Brass

3200X6X4 by Danfoss | Pipe Adapter | 3/8" Female Pipe x 1/4" Male Pipe | Brass Pack of 10

$55.48 - $55.48

$55.48

$55.48 - $55.48

$55.48

Aeroquip® by Danfoss
Pipe Adapter

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3200X6X4-BG Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPT, 1/4in Male NPT
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130139 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass with Sealant Part Number	Female Pipe Thread	Male Pipe Thread	Hex C	D	L
3200X2	3200X2Z	1/8"	1/8"	9/16"	0.219"	0.88"
3200X4X2	3200X4X2Z	1/4"	1/8"	3/4"	0.219"	1.06"
3200X4	-	1/4"	1/4"	3/4"	0.312"	1.25"
3200X6X4	3200X6X4Z	3/8"	1/4"	7/8"	0.312"	1.25"
3200X6	3200X6Z	3/8"	3/8"	7/8"	0.438"	1.25"
3200X8X6	3200X8X6Z	1/2"	3/8"	1-1/16"	0.438"	1.47"
3200X12X6	-	3/4"	3/8"	1-1/4"	0.438"	1.59"
3200X12X8	3200X12X8Z	3/4"	1/2"	1-1/4"	0.562"	1.69"
