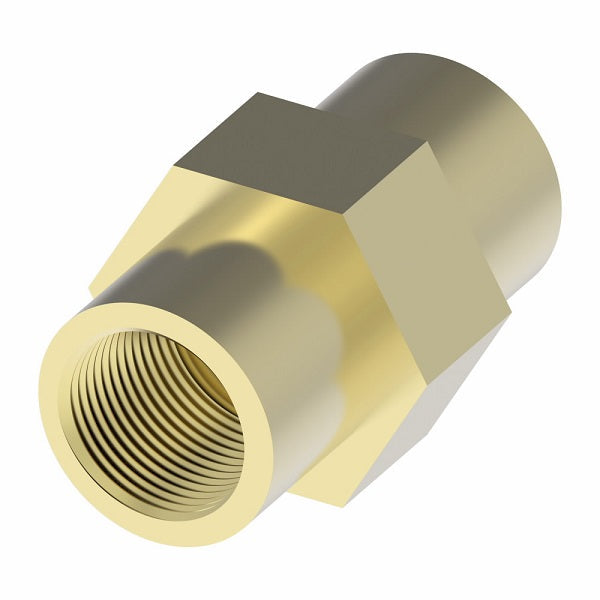

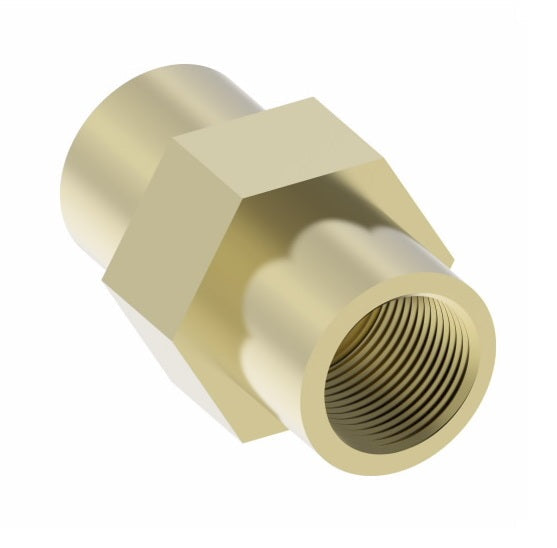

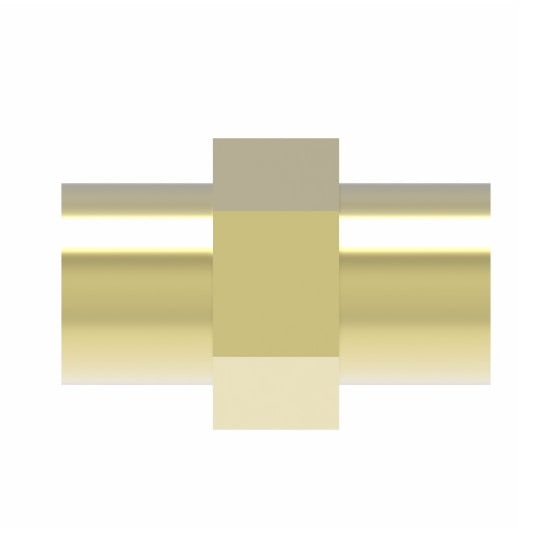

3250X8 by Danfoss | Pipe Adapter | Union | 1/2" Female NPTF x 1/2" Female NPTF | Brass

3250X8 by Danfoss | Pipe Adapter | Union | 1/2" Female NPTF x 1/2" Female NPTF | Brass

Name: 3250X8 by Danfoss | Pipe Adapter | Union | 1/2" Female NPTF x 1/2" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3250X8 Danfoss
Price: 69.03 USD
Availability: InStock

$69.03 - $69.03

$69.03

$69.03 - $69.03

$69.03

Aeroquip® by Danfoss
Pipe Adapter - Union

Quantity

Specifications for Variant SKU: 3250X8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPTF, 1/2in Female NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread	Hex C	D	L
3250X4	1/4"*	1-1/16"	0.438"	1.31"
3250X8	1/2"	1-9/16"	0.703"	1.81"

* PTF Short Thread
