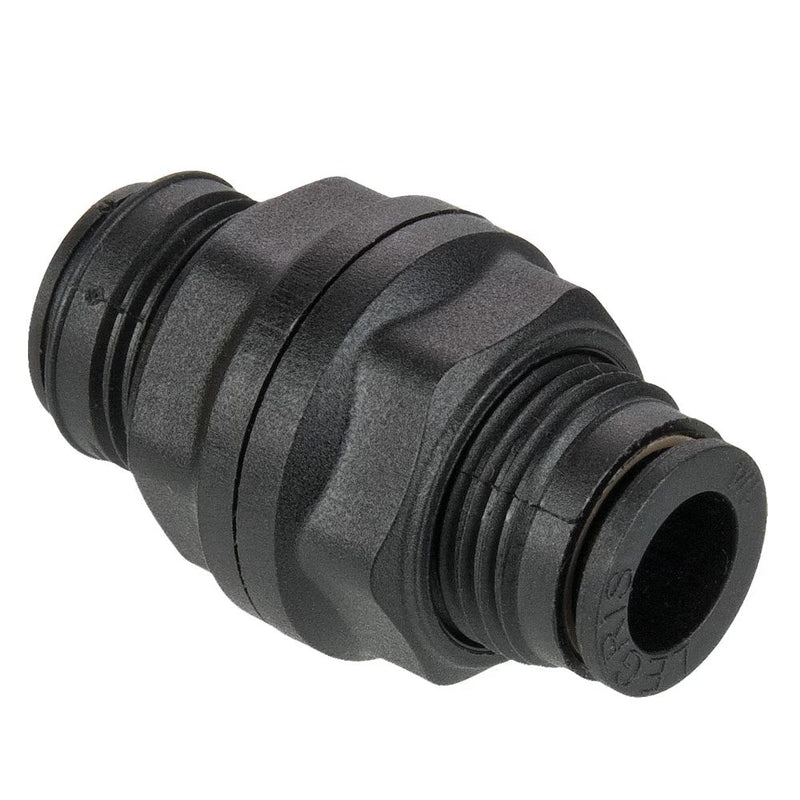

32PLPBH-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 10mm Tube Size | 22mm Hex (C) | 43.0mm Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLPBH-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 10mm Tube Size | 22mm Hex (C) | 43.0mm Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $9.04 Save $9.04
$99.45
$99.45 - $99.45
$99.45
$90.41
$90.41 - $90.41
$90.41

by Parker Hannifin
Push-to-Connect Fittings:32PLPBH Bulkhead Union

Package Quantity: 10 Units

Specifications for Variant SKU: 32PLPBH-10M Parker | 10 |
Series: 32PLPBH Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Hex (C) K (Max) L1 L2 Bulkhead Thread Bulkhead Hole Diameter
32PLPBH-4M 4 mm 13 mm 5.5 mm 15.0 mm 10.0 mm M12 X 1 12 mm
32PLPBH-6M 6 mm 15 mm 8.5 mm 18.0 mm 10.5 mm M14 X 1 14 mm
32PLPBH-8M 8 mm 18 mm 14.5 mm 25.0 mm 13.5 mm M16 X 1 16 mm
32PLPBH-10M 10 mm 22 mm 14.5 mm 27.5 mm 15.5 mm M22 X 1.5 22 mm
32PLPBH-12M 12 mm 26 mm 18.5 mm 33.0 mm 18.0 mm M24 X 1.5 24 mm
32PLPBH-14M 14 mm 29 mm 20.5 mm 37.5 mm 20.5 mm M26 X 1.5 26 mm
