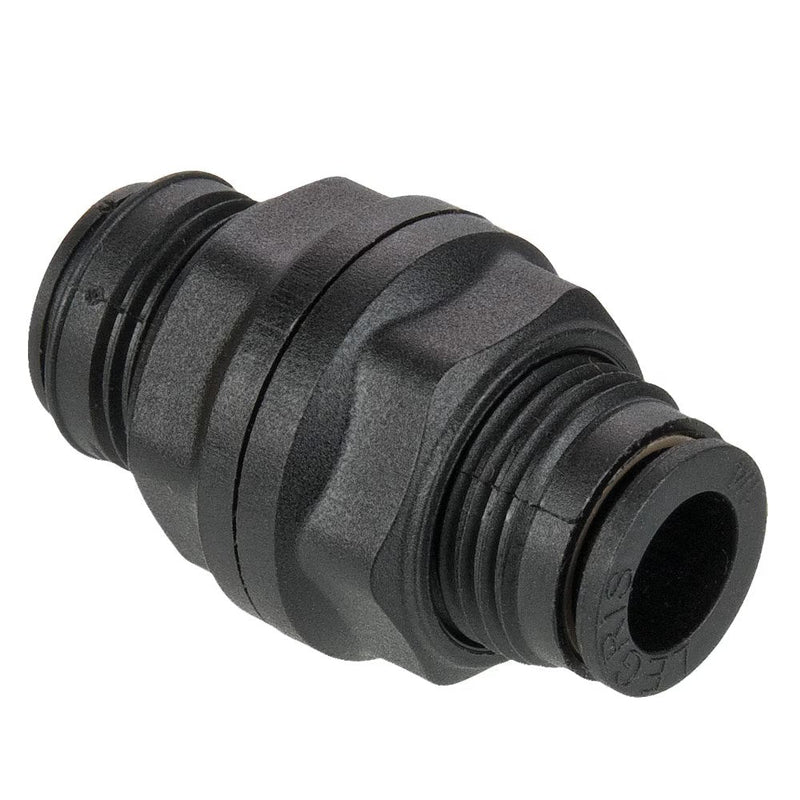

32PLPBH-14M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 14mm Tube Size | 29mm Hex (C) | 58.0mm Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $104.17

$260.43

$260.43 - $260.43

$260.43

$156.26

$156.26 - $156.26

$156.26

by Parker Hannifin
Push-to-Connect Fittings:32PLPBH Bulkhead Union

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 32PLPBH-14M Parker \| 10 \|
Series:	32PLPBH Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Hex (C)	K (Max)	L1	L2	Bulkhead Thread	Bulkhead Hole Diameter
32PLPBH-4M	4 mm	13 mm	5.5 mm	15.0 mm	10.0 mm	M12 X 1	12 mm
32PLPBH-6M	6 mm	15 mm	8.5 mm	18.0 mm	10.5 mm	M14 X 1	14 mm
32PLPBH-8M	8 mm	18 mm	14.5 mm	25.0 mm	13.5 mm	M16 X 1	16 mm
32PLPBH-10M	10 mm	22 mm	14.5 mm	27.5 mm	15.5 mm	M22 X 1.5	22 mm
32PLPBH-12M	12 mm	26 mm	18.5 mm	33.0 mm	18.0 mm	M24 X 1.5	24 mm
32PLPBH-14M	14 mm	29 mm	20.5 mm	37.5 mm	20.5 mm	M26 X 1.5	26 mm
