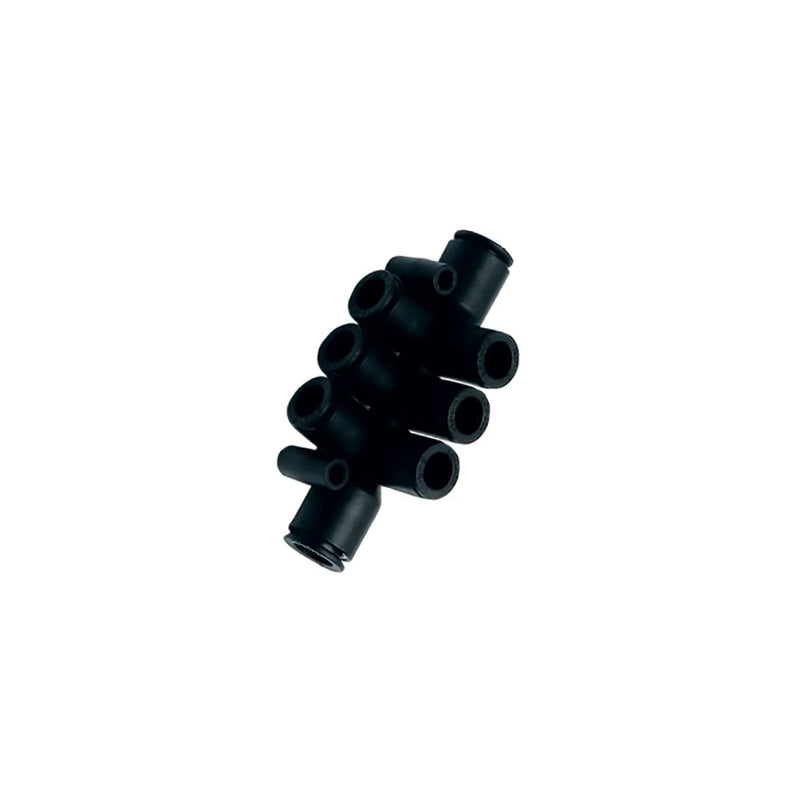

3304 60 56 by Parker | Legris Multiple Fittings | 3/8" Push-to-Connect x 1/4" Push-to-Connect | 3.31" Length | Multiple Tee | Nylon

3304 60 56 by Parker | Legris Multiple Fittings | 3/8" Push-to-Connect x 1/4" Push-to-Connect | 3.31" Length | Multiple Tee | Nylon | Pack of 5

Save $13.50 Save $13.50
$148.51
$148.51 - $148.51
$148.51
$135.01
$135.01 - $135.01
$135.01

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3306 90° Multiple Elbow

Package Quantity: 5 Units

Specifications for Variant SKU: 3306 60 56 Parker | 5 |
Brand: LF 3000®
Series: 3306 Series
Shape (Orientation): Multiple Tee
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 F G1 G2 H L N M ØT Oz
3306 56 04 1/4" 5/32" .45" .53" .43" .73" 2.84" .45" 1.69" .17" .85 Oz
3306 56 56 1/4" 1/4" .45" .53" .43" .73" 2.84" .45" 1.69" .17" 1.25 Oz
3306 60 56 3/8" 1/4" .51" .63" .53" .91" 3.31" .57" 2.05" .17" 2.30 Oz
