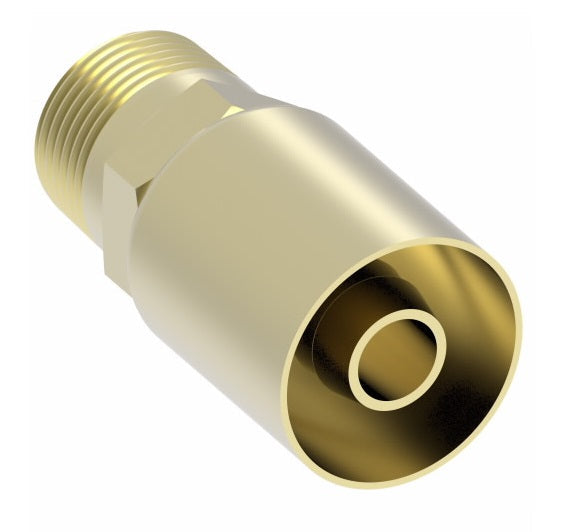

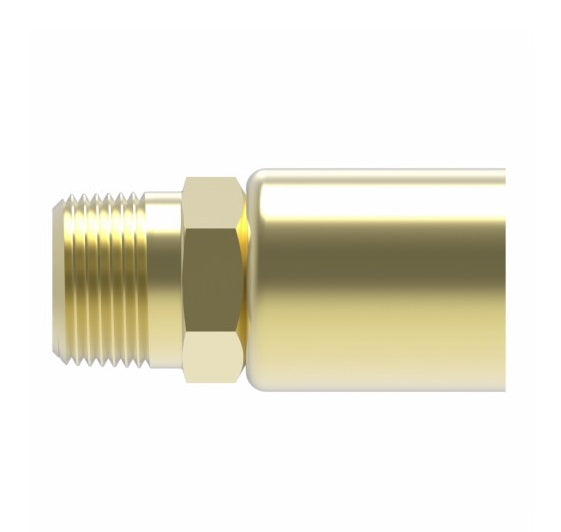

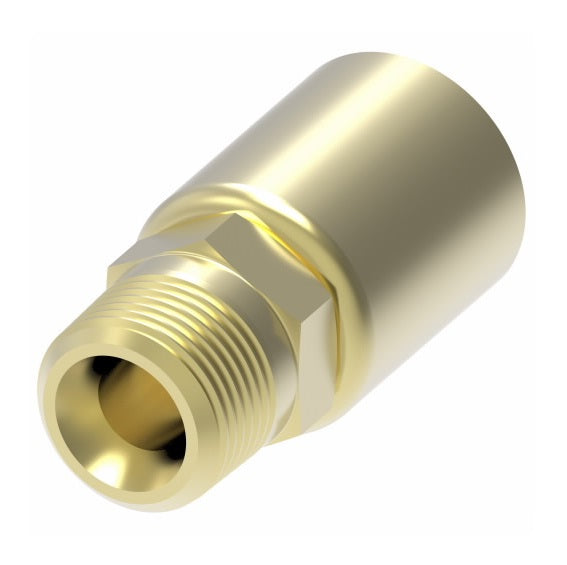

33808P-108 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -08 Male Pipe x -08 Hose Barb | Brass

33808P-108 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -08 Male Pipe x -08 Hose Barb | Brass

Name: 33808P-108 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -08 Male Pipe x -08 Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 33808P-108 Danfoss
Price: 10.3 USD
Availability: InStock

$10.30 - $10.30

$10.30

$10.30 - $10.30

$10.30

Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Male Pipe Rigid - Straight

Quantity

Specifications for Variant SKU: 33808P-108 Danfoss
Brand:	Weatherhead
Series:	338 'P' Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Hose Barb
Material(s):	Brass
Compatible with the following Series:	EC038 Series

Applications:
Air brake hose lines.
Advantages:
A permanent hose end saves time and is easy to assemble. Brass material offers excellent resistance against corrosion.
Pressure:
Determined by hose burst pressure.
Material:
CA360 Brass
Compatible Hose:
EC038

	Componentry
	1. Brass collar
	2. Brass insert. Male pipe or brass swivel insert with brass SAE nut.
	3. Brass A.B.S. insert with steel A.B.S. swivel nut.


Brass Part Number	Hose I.D.	Pipe Size	Thread Size	A	Hose Cut-Off Factor	Hole Diameter	Hex E
33806P-104	3/8"	1/4"	1/4-18	1.71"	0.75"	0.28"	9/16"
33806P-106	3/8"	3/8"	3/8-18	1.72"	0.81"	0.28"	11/16"
33806P-108	3/8"	1/2"	1/2-14	1.95"	1.00"	0.28"	7/8"
33808P-106	1/2"	3/8"	3/8-18	1.73"	0.81"	0.38"	11/16"
33808P-108	1/2"	1/2"	1/2-14	1.94"	1.00"	0.38"	7/8"

Note: Drawings may differ from actual parts.
