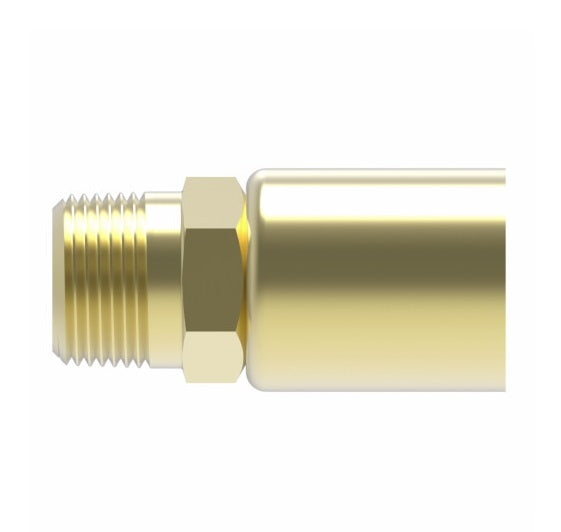

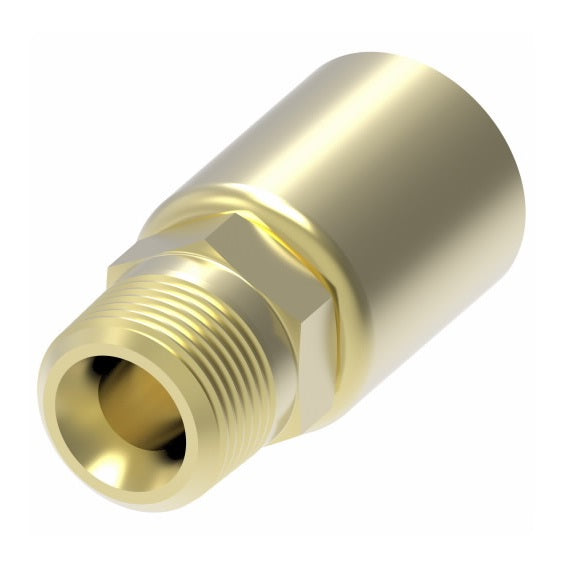

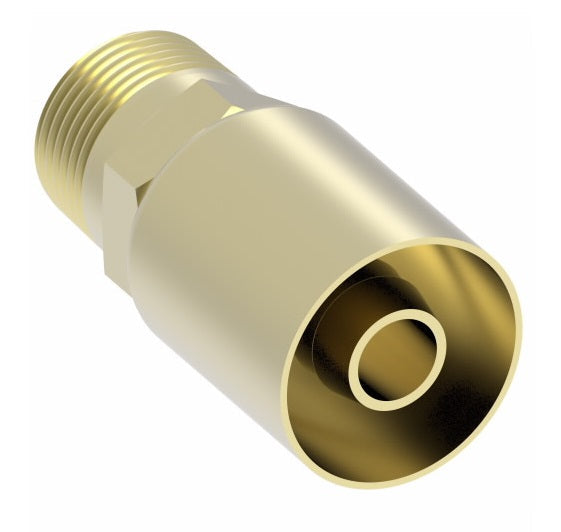

33806P-104 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -04 Male Pipe x -06 Hose Barb | Brass
33806P-104 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -04 Male Pipe x -06 Hose Barb | Brass
33806P-104 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -04 Male Pipe x -06 Hose Barb | Brass
33806P-104 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -04 Male Pipe x -06 Hose Barb | Brass

33806P-104 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -04 Male Pipe x -06 Hose Barb | Brass

$7.06 - $7.06
$7.06
$7.06 - $7.06
$7.06

Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Male Pipe Rigid - Straight
Specifications for Variant SKU: 33806P-104 Danfoss
Brand: Weatherhead
Series: 338 'P' Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Hose Barb
Material(s): Brass
Compatible with the following Series: EC038 Series
Applications:
  • Air brake hose lines.
Advantages:
  • A permanent hose end saves time and is easy to assemble.
  • Brass material offers excellent resistance against corrosion.
Pressure:
  • Determined by hose burst pressure.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Componentry
1. Brass collar
2. Brass insert. Male pipe or brass swivel insert with brass SAE nut.
3. Brass A.B.S. insert with steel A.B.S. swivel nut.
Brass
Part Number		 Hose
I.D.		 Pipe
Size		 Thread
Size		 A Hose
Cut-Off
Factor		 Hole
Diameter		 Hex
E
33806P-104 3/8" 1/4" 1/4-18 1.71" 0.75" 0.28" 9/16"
33806P-106 3/8" 3/8" 3/8-18 1.72" 0.81" 0.28" 11/16"
33806P-108 3/8" 1/2" 1/2-14 1.95" 1.00" 0.28" 7/8"
33808P-106 1/2" 3/8" 3/8-18 1.73" 0.81" 0.38" 11/16"
33808P-108 1/2" 1/2" 1/2-14 1.94" 1.00" 0.38" 7/8"

Note: Drawings may differ from actual parts.
