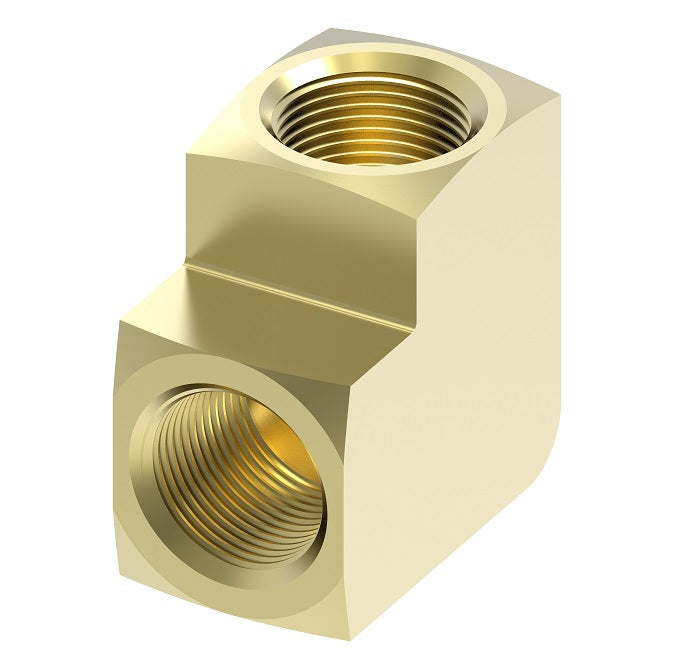

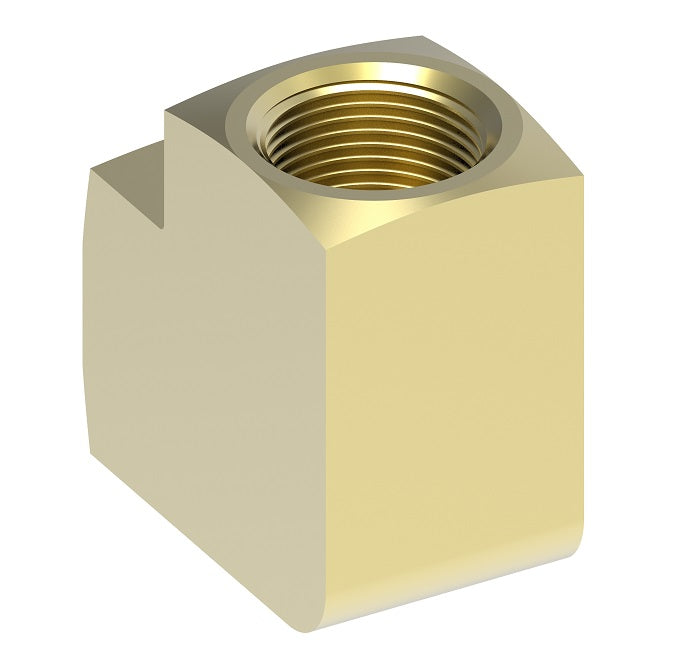

3500X2 by Danfoss | Pipe Adapter | 90° Elbow | 1/8" Female NPTF x 1/8" Female NPTF | Brass

3500X2 by Danfoss | Pipe Adapter | 90° Elbow | 1/8" Female NPTF x 1/8" Female NPTF | Brass

Name: 3500X2 by Danfoss | Pipe Adapter | 90° Elbow | 1/8" Female NPTF x 1/8" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3500X2 Danfoss
Price: 3.98 USD
Availability: InStock

$3.98 - $3.98

$3.98

$3.98 - $3.98

$3.98

Aeroquip® by Danfoss
Pipe Adapter - Female Adapter

Quantity

Specifications for Variant SKU: 3500X2 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130238 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread	C	D	N
3500X2	1/8"	9/16"	0.339"	0.55"
3500X4	1/4"	11/16"	0.438"	0.78"
3500X6	3/8"	3/4"	0.562"	0.84"
3500X8	1/2"	1"	0.703"	1.09"
3500X12	3/4"	1-1/4"	0.891"	1.16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
