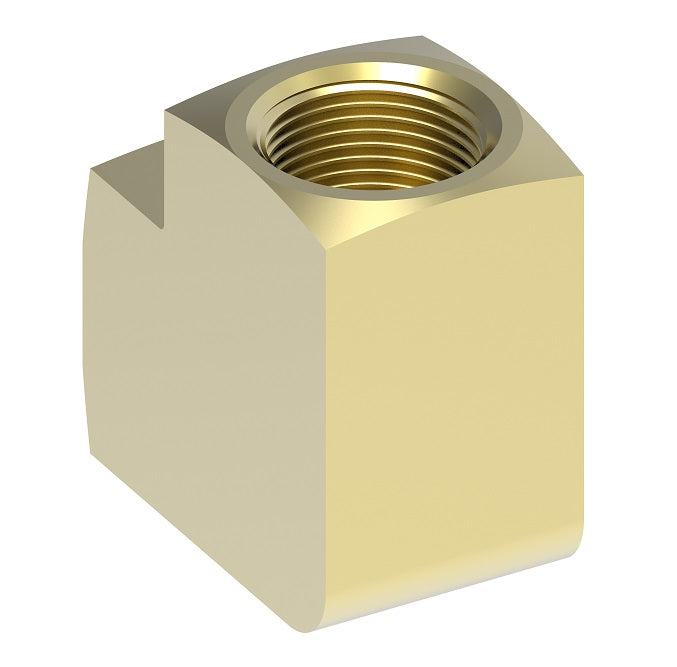

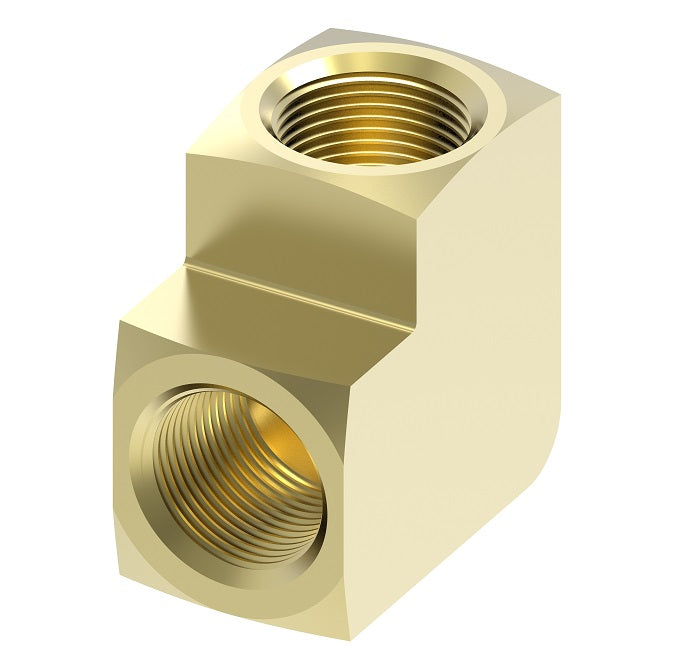

Name: 3500X4 by Danfoss | Pipe Adapter | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3500X4 Danfoss
Price: 5.79 USD
Availability: InStock

$5.79 - $5.79

$5.79

$5.79 - $5.79

$5.79

Aeroquip® by Danfoss
Pipe Adapter - Female Adapter

Quantity

Specifications for Variant SKU: 3500X4 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130238 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread	C	D	N
3500X2	1/8"	9/16"	0.339"	0.55"
3500X4	1/4"	11/16"	0.438"	0.78"
3500X6	3/8"	3/4"	0.562"	0.84"
3500X8	1/2"	1"	0.703"	1.09"
3500X12	3/4"	1-1/4"	0.891"	1.16"
