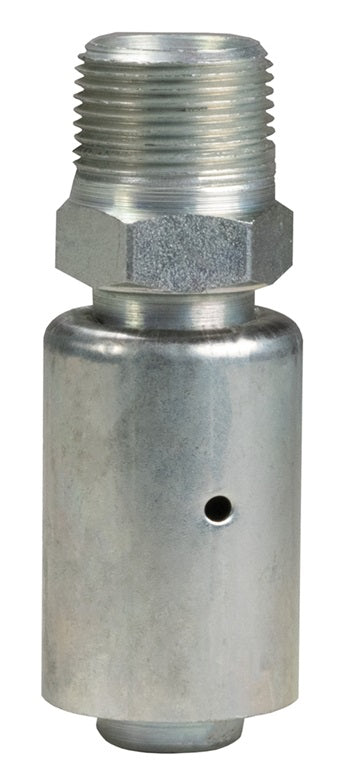

3505WF by Dixon Valve | 3500 Nipple with Ferrule | 1/4" Male NPT x 3/8" Hose ID | Hose OD From: 46/64" to 50/64" | Steel

3505WF by Dixon Valve | 3500 Nipple with Ferrule | 1/4" Male NPT x 3/8" Hose ID | Hose OD From: 46/64" to 50/64" | Steel

Save $2.00 Save $2.00
$23.73
$23.73 - $23.73
$23.73
$21.73
$21.73 - $21.73
$21.73

Dixon Valve & Coupling
3500 Male NPT Nipple with Ferrule

For air and water service only.
Specifications for Variant SKU: 3505WF Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male NPT
Material(s): Steel
Features:
  • Low profile
  • Streamline appearance
Installation:
  • Can be crimped or swaged-on to achieve maximum coupling sealing and retention.
Construction:
  • Zinc plated steel 3500 nipple
  • Carbon steel ferrule
Safety Notes:
  • The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • To construct a whip hose, connect one end of a short (3' to 10') air hose to the air tool using a 3500 type steel nipple. Connect the other end of the hose to the air supply using the standard quick-acting coupling. The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection. The whip hose should remain permanently connected to the tool.
Steel
Part Number		 Hose Size Male NPT Hose O.D. Range
From To
3505WF 3/8" 1/4" 46/64" 50/64"
3508WF 3/8" 1/2" 46/64" 50/64"
3509WF 1/2" 1/4" 54/64" 58/64"
3510WF 1/2" 3/8" 54/64" 58/64"
3511WF 1/2" 3/4" 54/64" 58/64"
3512WF 1/2" 1/2" 54/64" 58/64"
3514WF 3/4" 3/4" 1-10/64" 1-14/64"
3518WF 1" 1" 1-30/64" 1-34/64"
3518WF2 1" 1" 1-34/64" 1-38/64"
