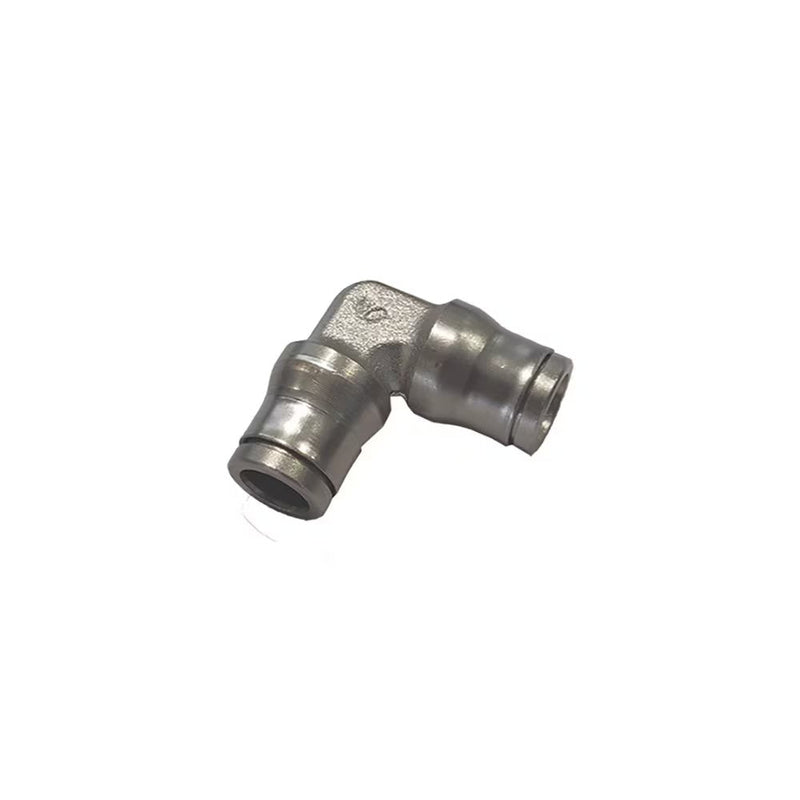

3602 62 00 by Parker | Metal Union Push-to-Connect Fitting | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 1.61" Length | 90° Elbow | Nickel-Plated Brass

3602 62 00 by Parker | Metal Union Push-to-Connect Fitting | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 1.61" Length | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $41.51 Save $41.51
$103.77
$103.77 - $103.77
$103.77
$62.26
$62.26 - $62.26
$62.26

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3602 - union elbow fractional inch tube to tube

Package Quantity: 5 Units

Specifications for Variant SKU: 3602 62 00 Parker | 5 |
Brand: LF3600®
Series: 3602 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD G J L Oz
3602 56 00 1/4" .49" .32" 1.12" .60"
3602 60 00 3/8" .67" .47" 1.48" 1.34"
3602 62 00 1/2" .79" .59" 1.61" 1.98"
