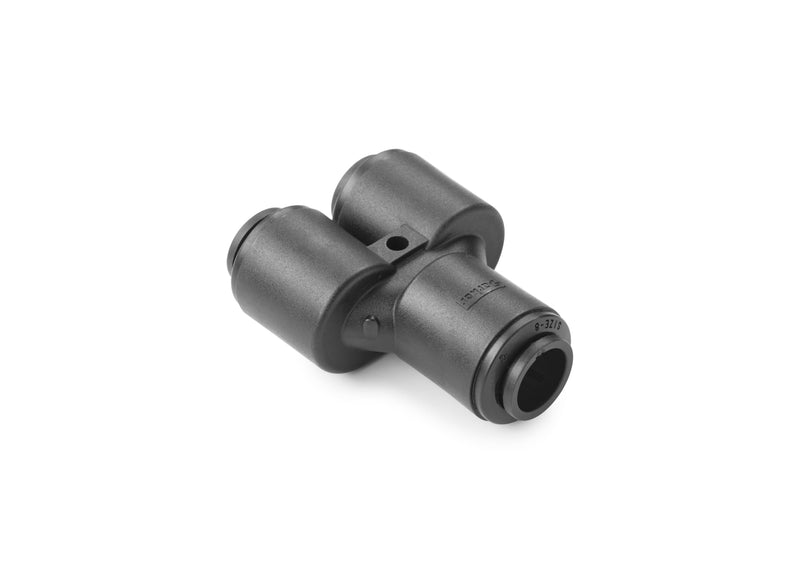

362PW-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fittings | 1/4" Tube Size x 1/4" Tube Size | 2.100" Length (L) | 1.43" Width (W) | 0.190" Flow Dia. | Union Y | PVDF

362PW-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fittings | 1/4" Tube Size x 1/4" Tube Size | 2.100" Length (L) | 1.43" Width (W) | 0.190" Flow Dia. | Union Y | PVDF

Save $6.43 Save $6.43
$16.08
$16.08 - $16.08
$16.08
$9.65
$9.65 - $9.65
$9.65

by Parker Hannifin
Push-to-Connect Fittings:362PW – Union Y (PVDF) – Inch
Specifications for Variant SKU: 362PW-4 Parker
Series: 362PW Series
Shape (Orientation): Y
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size 1 Tube Size 2 Length (L) Width (W) Flow Diameter (D)
362PW-4 1/4" 1/4" 2.100" 1.43" .190
362PW-4-6 3/8" 1/4" 2.100" 1.43" .190
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
