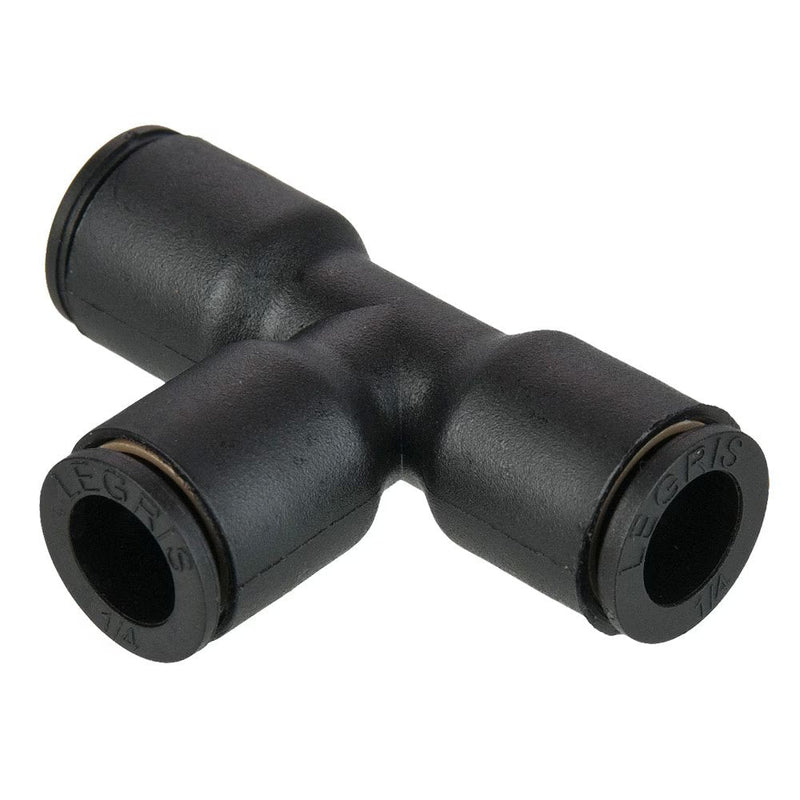

364PLP-4M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 5/32" to 1/4" Unequal Union | .71 Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

364PLP-4M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 5/32" to 1/4" Unequal Union | .71 Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

Save $39.74 Save $39.74
$99.35
$99.35 - $99.35
$99.35
$59.61
$59.61 - $59.61
$59.61

by Parker Hannifin
Push-to-Connect Fittings:364PLP Unequal Union Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 364PLP-4M-4 Parker | 10 |
Series: 364PLP Series
Shape (Orientation): Tee
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L/2 H
364PLP-2-4 1/8" 1/4" .71" .93"
364PLP-4M-4 5/32" 1/4" .71" .93"
364PLP-4-2 1/4" 1/8" .73" .93"
364PLP-4-4M 1/4" 5/32" .73" .93"
364PLP-4-6 1/4" 3/8" .96" 1.32"
364PLP-6-4 3/8" 1/4" 1.00" 1.28"
364PLP-6-8 3/8" 1/4" 1.38" 1.81"
364PLP-8-4 1/2" 1/4" 1.38" 1.81"
364PLP-8-6 1/2" 3/8" 1.38" 1.81"
