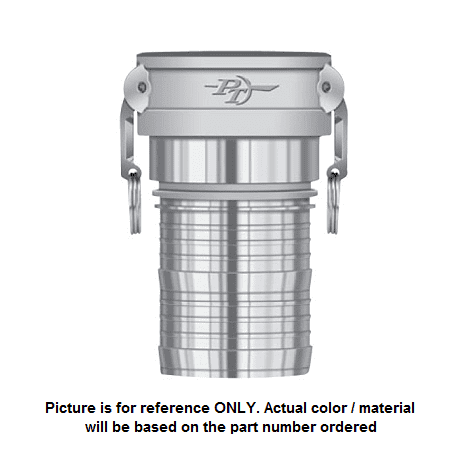

60234000 (40CSV) by PT-Coupling | 4" Swivel Coupler x 4" Hose Shank | Aluminum | Viton Seal

60234000 (40CSV) by PT-Coupling | 4" Swivel Coupler x 4" Hose Shank | Aluminum | Viton Seal

Save $32.04 Save $32.04
$288.35
$288.35 - $288.35
$288.35
$256.31
$256.31 - $256.31
$256.31
Specifications for Variant SKU: 60234000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part CSV - 360° Swivel - Coupler x Hose Shank - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Coupler
Size		 Hose Shank
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min. Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15CSV 60231500 - 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 250 PSI
20CSV 60232000 - 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 250 PSI
25CSV 60232500 - 2-1/2" 2-1/2" 8.03" 4.43" 5.93" 2.18" 2.16" 2.06" 200 PSI
30CSV 60233000 - 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 200 PSI
40CSV 60234000 - 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 150 PSI
50CSV 60235000 - 5" 5" 11.67" 7.57" 7.24" 2.44" 4.53" 4.43" 75 PSI
60CSV 60236000 - 6" 6" 16.26" 10.16" 9.50" 2.70" 5.53" 5.43" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
