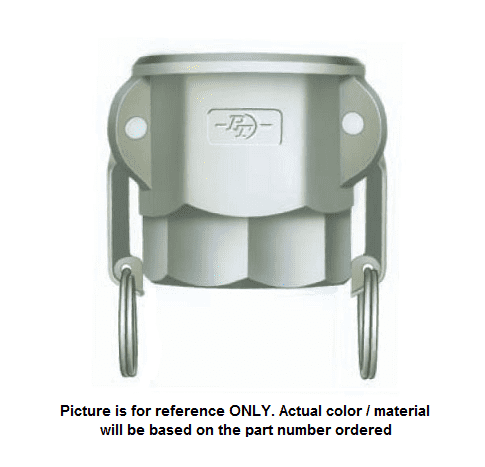

74624001 (40DWS) by PT-Coupling | 4" Coupler x Socket Weld for Pipe | Carbon Steel

74624001 (40DWS) by PT-Coupling | 4" Coupler x Socket Weld for Pipe | Carbon Steel

Save $32.05 Save $32.05
$288.48
$288.48 - $288.48
$288.48
$256.43
$256.43 - $256.43
$256.43
Specifications for Variant SKU: 74624001 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in Weld End
Material(s): Carbon Steel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWS - Coupler x Socket Weld For Pipe - Carbon Steel
Features & Applications:
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
10DWS 74621001 1" 5.10" 2.44" 0.97" 2.50" 0.50" 1.36" 250 PSI
15DWS 74621501 1-1/2" 7.16" 3.56" 1.50" 2.81" 0.50" 1.95" 250 PSI
20DWS 74622001 2" 7.54" 3.94" 1.88" 3.10" 0.70" 2.44" 250 PSI
30DWS 74623001 3" 9.56" 5.46" 2.88" 3.50" .70" 3.57" 200 PSI
40DWS 74624001 4" 10.66" 6.56" 3.60" 3.90" .70" 4.58" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
