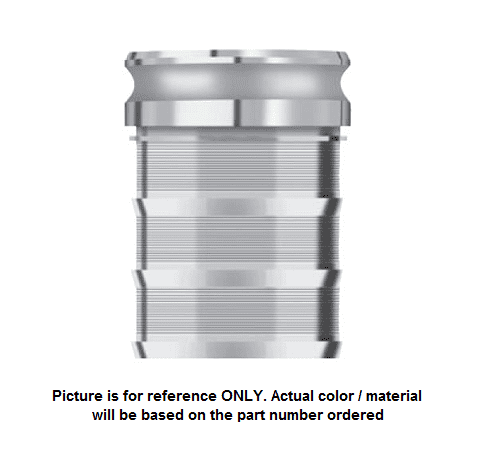

1000540H (40EHD) by PT-Coupling | Heavy Duty 4" Adapter x 4" Hose Shank | Aluminum | Buna-N Seal

Name: 1000540H (40EHD) by PT-Coupling | Heavy Duty 4" Adapter x 4" Hose Shank | Aluminum | Buna-N Seal
Brand: PT-Coupling
SKU: 1000540H PT-Coupling
Price: 107.53 USD
Availability: InStock

Save $13.44

$120.97

$120.97 - $120.97

$120.97

$107.53

$107.53 - $107.53

$107.53

Quantity

Specifications for Variant SKU: 1000540H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Heavy Duty Couplings - Part EHD - Heavy Duty Adapter x Hose Shank - Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA
This Fitting is also Available in the Following Materials:
Aluminum / Brass / Stainless Steel / Ductile Iron

Part Name	Item #	Heavy Duty Adapter	Hose Shank Size	Max. Allowable Working Press. (PSI)*
30EHD	1000530H	3"	3"	400 PSI
40EHD	1000540H	4"	4"	300 PSI
60EHD	1000560H	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
