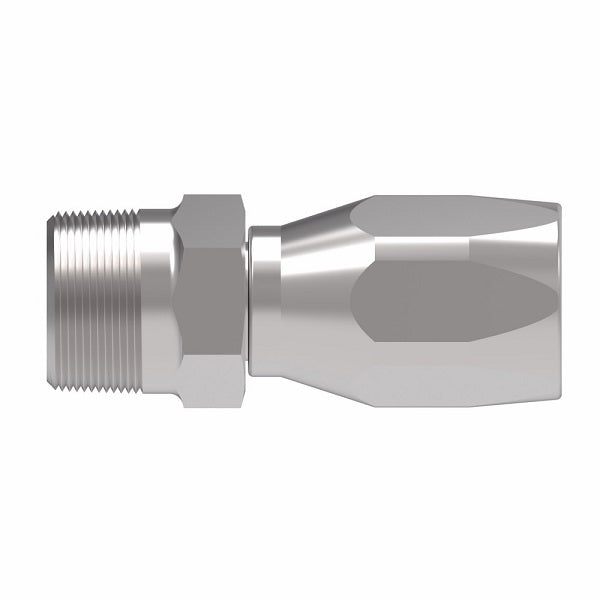

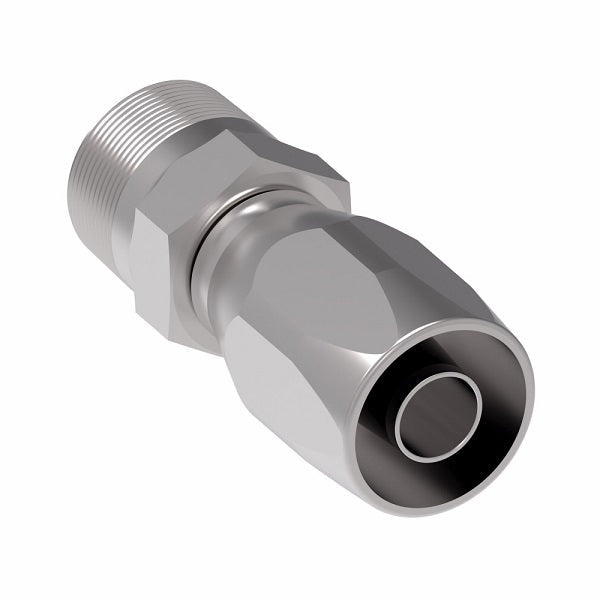

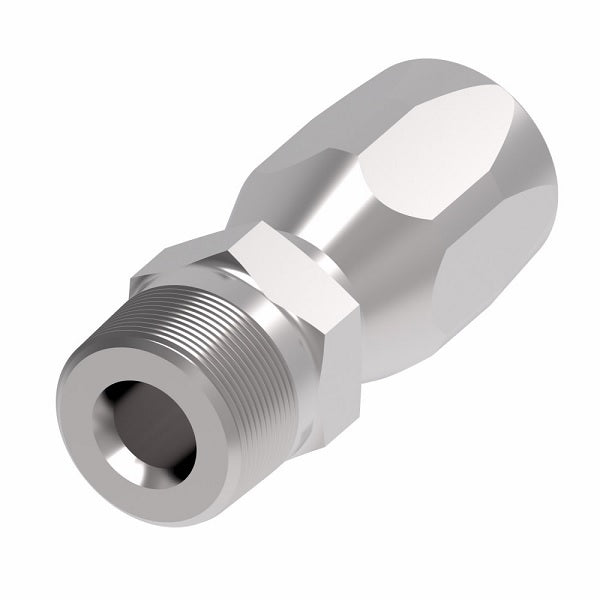

412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel

412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel

$24.91 - $24.91
$24.91
$24.91 - $24.91
$24.91

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 412-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Brass
Part Number 		Brass & Bronze
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ
412-2-4S* 412-2-4B* - - -04 1/8-27 1.68" 0.92" 0.17"
412-4-4S* 412-4-4B* - - -04 1/4-18 1.86" 1.11" 0.17"
412-2-5S* - - - -05 1/8-27 1.78" 1.00" 0.23"
412-4-5S* 412-4-5B* - - -05 1/4-18 1.96" 1.18" 0.23"
412-4-6S* 412-4-6B* - - -06 1/4-18 2.13" 1.23" 0.30"
412-6-6S* 412-6-6B* - - -06 3/8-18 2.13" 1.23" 0.24"
412-6-8S* 412-6-8B* - - -08 3/8-18 2.48" 1.33" 0.39"
412-8-8S* 412-8-8B* - - -08 1/2-14 2.73" 1.58" 0.36"
412-8-10S* 412-8-10B* - - -10 1/2-14 2.88" 1.59" 0.48"
412-12-10S* - - - -10 3/4-14 2.94" 1.65" 0.48"
412-12-12S* 412-12-12B* - - -12 3/4-14 3.24" 1.67" 0.61"
412-12-16S 412-12-16B - - -16 3/4-14 2.80" 1.53" 0.82"
412-16-16S 412-16-16B - - -16 1-11-1/2 2.99" 1.72" 0.82"
412-16-20S 412-16-20B - - -20 1-11-1/2 3.20" 1.72" 0.95"
412-20-20S 412-20-20B - - -20 1-1/4-11-1/2 3.23" 1.87" 1.05"
412-20-24S - - - -24 1-1/4-11-1/2 3.58" 2.12" 1.28"
412-24-24S 412-24-24B - 259-412-24-24 -24 1-1/2-11-1/2 3.48" 2.03" 1.28"
412-32-32S 412-32-32B - - -32 2-11-1/2 4.05" 2.20" 1.75"

* Requires tool for assembly.
