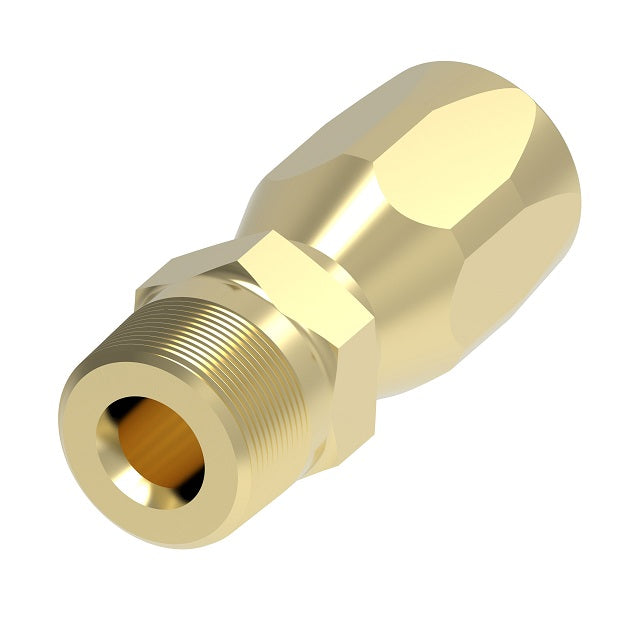

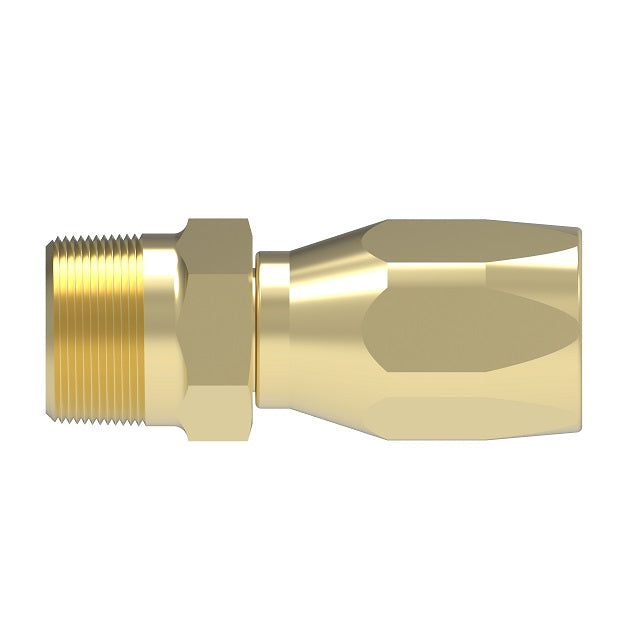

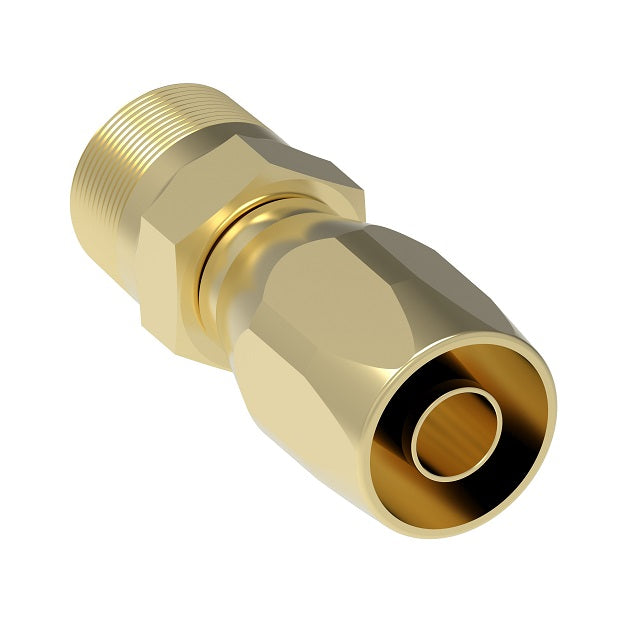

412-16-16B Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -16 Male Pipe x -16 Reusable Hose End | Brass
412-16-16B Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -16 Male Pipe x -16 Reusable Hose End | Brass
412-16-16B Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -16 Male Pipe x -16 Reusable Hose End | Brass
412-16-16B Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -16 Male Pipe x -16 Reusable Hose End | Brass

412-16-16B Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -16 Male Pipe x -16 Reusable Hose End | Brass

$121.95 - $121.95
$121.95
$121.95 - $121.95
$121.95

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 412-16-16B Danfoss
Brand: Aeroquip
Ends Configuration: 1in Male NPT, 1in Reusable Hose End
Material(s): Brass
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Brass
Part Number 		Brass & Bronze
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ
412-2-4S* 412-2-4B* - - -04 1/8-27 1.68" 0.92" 0.17"
412-4-4S* 412-4-4B* - - -04 1/4-18 1.86" 1.11" 0.17"
412-2-5S* - - - -05 1/8-27 1.78" 1.00" 0.23"
412-4-5S* 412-4-5B* - - -05 1/4-18 1.96" 1.18" 0.23"
412-4-6S* 412-4-6B* - - -06 1/4-18 2.13" 1.23" 0.30"
412-6-6S* 412-6-6B* - - -06 3/8-18 2.13" 1.23" 0.24"
412-6-8S* 412-6-8B* - - -08 3/8-18 2.48" 1.33" 0.39"
412-8-8S* 412-8-8B* - - -08 1/2-14 2.73" 1.58" 0.36"
412-8-10S* 412-8-10B* - - -10 1/2-14 2.88" 1.59" 0.48"
412-12-10S* - - - -10 3/4-14 2.94" 1.65" 0.48"
412-12-12S* 412-12-12B* - - -12 3/4-14 3.24" 1.67" 0.61"
412-12-16S 412-12-16B - - -16 3/4-14 2.80" 1.53" 0.82"
412-16-16S 412-16-16B - - -16 1-11-1/2 2.99" 1.72" 0.82"
412-16-20S 412-16-20B - - -20 1-11-1/2 3.20" 1.72" 0.95"
412-20-20S 412-20-20B - - -20 1-1/4-11-1/2 3.23" 1.87" 1.05"
412-20-24S - - - -24 1-1/4-11-1/2 3.58" 2.12" 1.28"
412-24-24S 412-24-24B - 259-412-24-24 -24 1-1/2-11-1/2 3.48" 2.03" 1.28"
412-32-32S 412-32-32B - - -32 2-11-1/2 4.05" 2.20" 1.75"

* Requires tool for assembly.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
