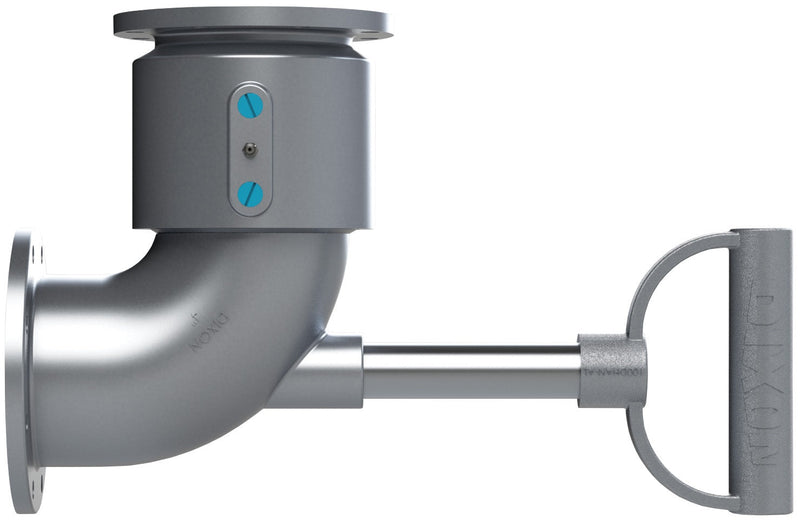

43HTFXTFAL11000 by Dixon Valve | Swivel Joint | Loading Arm Swivel | 4" Size | Style 30 Short Radius | D-handle | FKM-A Seal | Aluminum

43HTFXTFAL11000 by Dixon Valve | Swivel Joint | Loading Arm Swivel | 4" Size | Style 30 Short Radius | D-handle | FKM-A Seal | Aluminum

Save $64.26 Save $64.26
$850.58
$850.58 - $850.58
$850.58
$786.32
$786.32 - $786.32
$786.32

Dixon Valve
Swivel Joint | Loading Arm Swivel
Specifications for Variant SKU: 43HTFXTFAL11000 Dixon
Series: Style 30
Ends Configuration: 4in TTMA Flange, 4in TTMA Flange, Some Ends Match
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • TTMA-flanged loading arm swivel with heavy-duty D-style shovel handle.
  • Shovel handle is used to guide the connection of the API load coupler to the adapter on the tank truck.
  • Long radius elbow improves the flow into the API load coupler and provides spacing between the load arm and the tank truck.
  • FKM-A swivel seals are compatible with ethanol blended fuel.
  • Can be used with flange extensions.
  • TTMA flanges on both ends.
Safety Notes:
  • The Swivel should be packed such that the surfaces coming in contact with the fluid being handled are compatible with that fluid. In case of the use of the swivel in submerged service, this would include the dust seals and ball bearings. Dixon always recommends the use of the stainless steel ball bearings when building a swivel for submerged service, since should the standard carbon steel ball bearings rust together, they make it possible to dissemble the swivel and may affect operation.
  • Lubrication should be performed periodically, depending on service and operating conditions. Twice yearly is normally sufficient.
3"
Part Number		 4"
Part Number		 Description Handle Seal
- 43HTFXTFAL00000 Style 30 Short Radius D-Handle Nitrile Rubber
- 43HTFXTFAL11000 Style 30 Short Radius D-Handle FKM-A
- 43BTFXTFAL00000 Style 30 Short Radius Ball Handle Nitrile Rubber
- 43BTFXTFAL11000 Style 30 Short Radius Ball Handle FKM-A
330TFXTFAL11000 430TFXTFAL11000 Style 30 Short Radius No Handle FKM-A
- 43HTFTFLAL11000 Style 30 Long Radius D-Handle FKM-A
- 43BTFTFLAL11000 Style 30 Long Radius Ball Handle FKM-A
- 44HTFXTFAL11000 Style 40 D-Handle FKM-A
340TFXTFAL00000 440TFXTFAL00000 Style 40 No Handle Nitrile rubber
- 440TFXTFAL11000 Style 40 No Handle FKM-A
- 45HTFXTFAL00000 Style 50 D-Handle Nitrile Rubber
- 45HTFXTFAL11000 Style 50 D-Handle FKM-A
- 45BTFXTFAL00000 Style 50 Ball Handle Nitrile Rubber
- 45BTFXTFAL11000 Style 50 Ball Handle FKM-A
