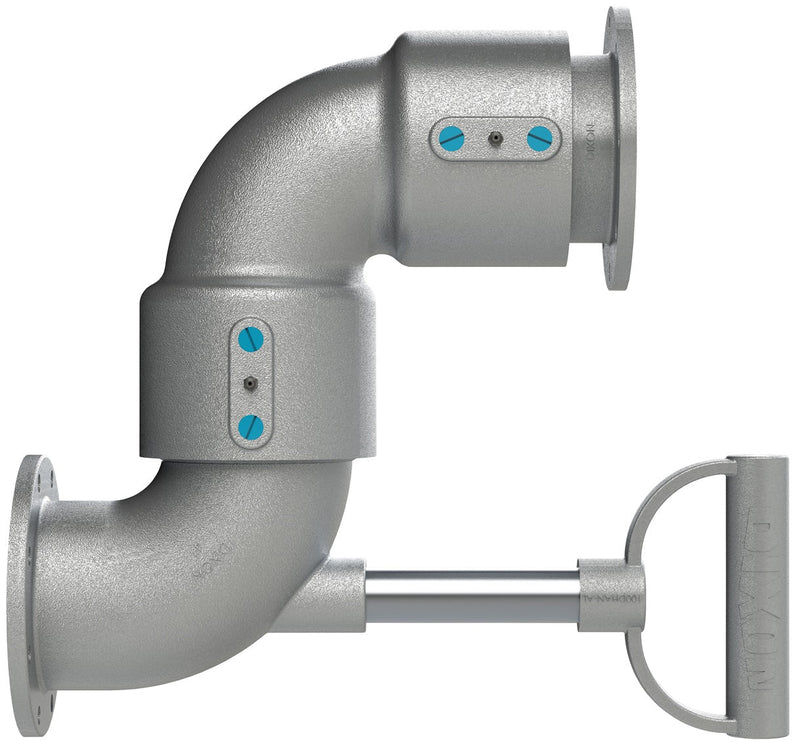

45HTFXTFAL11000 by Dixon Valve | Swivel Joint | Loading Arm Swivel | 4" Size | Style 50 | D-Handle | FKM-A Seal | Aluminum

Save $85.16

$1,127.17

$1,127.17 - $1,127.17

$1,127.17

$1,042.01

$1,042.01 - $1,042.01

$1,042.01

Dixon Valve
Swivel Joint | Loading Arm Swivel

Quantity

Specifications for Variant SKU: 45HTFXTFAL11000 Dixon
Series:	Style 50
Ends Configuration:	4in TTMA Flange, 4in TTMA Flange, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Features:
TTMA-flanged loading arm swivel with heavy-duty D-style shovel handle. Shovel handle is used to guide the connection of the API load coupler to the adapter on the tank truck. Long radius elbow improves the flow into the API load coupler and provides spacing between the load arm and the tank truck. FKM-A swivel seals are compatible with ethanol blended fuel. Can be used with flange extensions. TTMA flanges on both ends.
Safety Notes:
The Swivel should be packed such that the surfaces coming in contact with the fluid being handled are compatible with that fluid. In case of the use of the swivel in submerged service, this would include the dust seals and ball bearings. Dixon always recommends the use of the stainless steel ball bearings when building a swivel for submerged service, since should the standard carbon steel ball bearings rust together, they make it possible to dissemble the swivel and may affect operation. Lubrication should be performed periodically, depending on service and operating conditions. Twice yearly is normally sufficient.

3" Part Number	4" Part Number	Description	Handle	Seal
-	43HTFXTFAL00000	Style 30 Short Radius	D-Handle	Nitrile Rubber
-	43HTFXTFAL11000	Style 30 Short Radius	D-Handle	FKM-A
-	43BTFXTFAL00000	Style 30 Short Radius	Ball Handle	Nitrile Rubber
-	43BTFXTFAL11000	Style 30 Short Radius	Ball Handle	FKM-A
330TFXTFAL11000	430TFXTFAL11000	Style 30 Short Radius	No Handle	FKM-A
-	43HTFTFLAL11000	Style 30 Long Radius	D-Handle	FKM-A
-	43BTFTFLAL11000	Style 30 Long Radius	Ball Handle	FKM-A
-	44HTFXTFAL11000	Style 40	D-Handle	FKM-A
340TFXTFAL00000	440TFXTFAL00000	Style 40	No Handle	Nitrile rubber
-	440TFXTFAL11000	Style 40	No Handle	FKM-A
-	45HTFXTFAL00000	Style 50	D-Handle	Nitrile Rubber
-	45HTFXTFAL11000	Style 50	D-Handle	FKM-A
-	45BTFXTFAL00000	Style 50	Ball Handle	Nitrile Rubber
-	45BTFXTFAL11000	Style 50	Ball Handle	FKM-A
