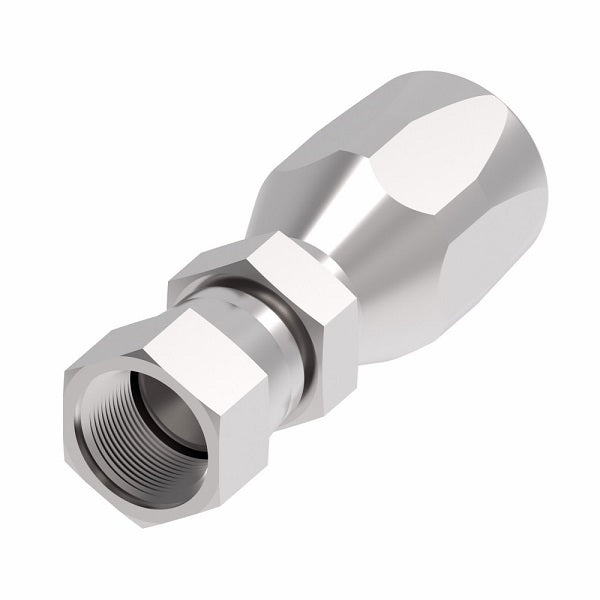

4411-16S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

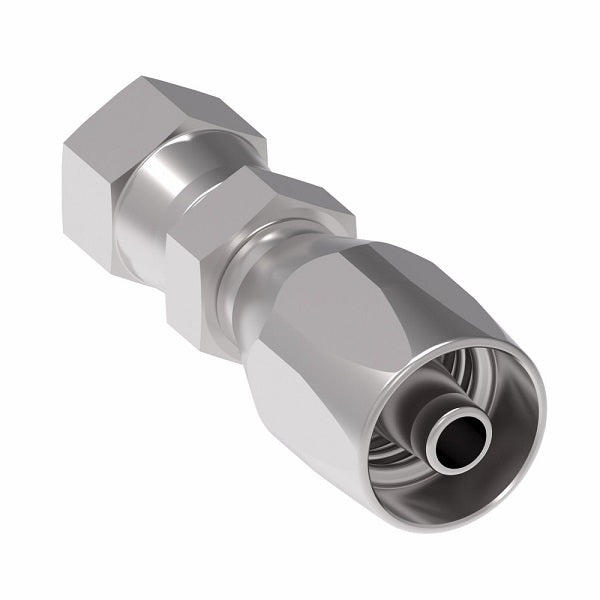

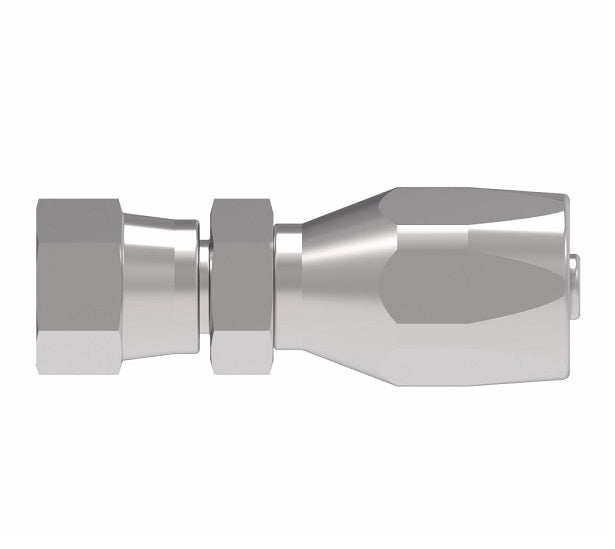

4411-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (2 Piece) | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Name: 4411-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (2 Piece) | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4411-12S Danfoss
Price: 44.79 USD
Availability: InStock

$44.79 - $44.79

$44.79

$44.79 - $44.79

$44.79

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4411-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ
4411-4S*	259-4411-4	-04	7/16-20	1.97"	1.23"	0.13"
4411-4-5S	-	-05	7/16-20	2.08"	1.30"	0.17"
4411-5S*	259-4411-5	-05	1/2-20	2.12"	1.35"	0.18"
4411-6S	259-4411-6	-06	9/16-18	2.33"	1.43"	0.24"
4411-6-8S	-	-08	9/16-18	2.68"	1.53"	0.30"
4411-8S*	259-4411-8	-08	3/4-16	2.78"	1.62"	0.36"
4411-8-6S*	-	-06	3/4-16	2.42"	1.52"	0.24"
4411-10-8S	-	-08	7/8-14	2.95"	1.80"	0.36"
4411-8-10S*	-	-10	3/4-16	2.92"	1.64"	0.39"
4411-10S*	259-4411-10	-10	7/8-14	3.10"	1.81"	0.46"
4411-12-10S	-	-10	1-1/16-12	3.19"	1.91"	0.46"
4411-10-12S	-	-12	7/8-14	3.40"	1.83"	0.55"
4411-12S	259-4411-12	-12	1-1/16-12	3.46"	1.92"	0.55"
4411-14-12S	-	-12	1-3/16-12	3.56"	1.99"	0.55"
4411-16S	259-4411-16	-16	1-5/16-12	3.19"	1.93"	0.82"
4411-20S	-	-20	1-5/8-12	3.43"	2.07"	1.05"
4411-20-24S	-	-24	1-5/8-12	3.65"	2.19"	1.06"
4411-24S	-	-24	1-7/8-12	3.68"	2.22"	1.28"
4411-32S	-	-32	2-1/2-12	4.39"	2.55"	1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat
