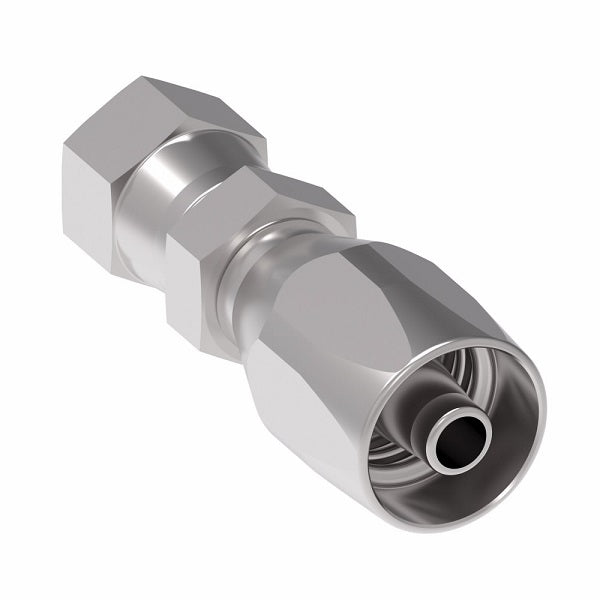

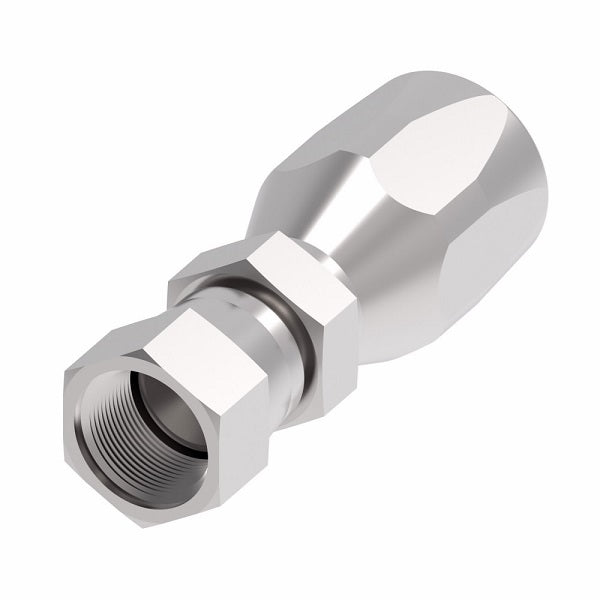

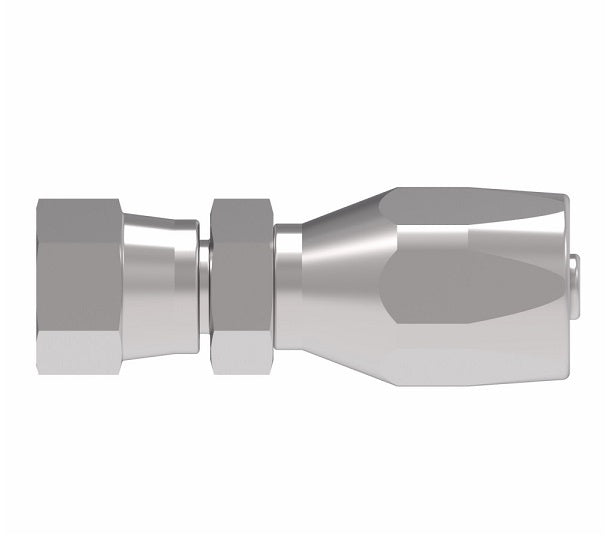

4411-5S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -05 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -05 Reusable Hose End | Steel
4411-5S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -05 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -05 Reusable Hose End | Steel
4411-5S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -05 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -05 Reusable Hose End | Steel
4411-5S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -05 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -05 Reusable Hose End | Steel

4411-5S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -05 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -05 Reusable Hose End | Steel

$13.40 - $13.40
$13.40
$13.40 - $13.40
$13.40

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Two Piece Fitting.

Threads on this fitting are JIC Swivel/SAE 45° Flare Dual Seat.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4411-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/16in Female JIC, 5/16in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ
4411-4S* 259-4411-4 -04 7/16-20 1.97" 1.23" 0.13"
4411-4-5S - -05 7/16-20 2.08" 1.30" 0.17"
4411-5S* 259-4411-5 -05 1/2-20 2.12" 1.35" 0.18"
4411-6S 259-4411-6 -06 9/16-18 2.33" 1.43" 0.24"
4411-6-8S - -08 9/16-18 2.68" 1.53" 0.30"
4411-8S* 259-4411-8 -08 3/4-16 2.78" 1.62" 0.36"
4411-8-6S* - -06 3/4-16 2.42" 1.52" 0.24"
4411-10-8S - -08 7/8-14 2.95" 1.80" 0.36"
4411-8-10S* - -10 3/4-16 2.92" 1.64" 0.39"
4411-10S* 259-4411-10 -10 7/8-14 3.10" 1.81" 0.46"
4411-12-10S - -10 1-1/16-12 3.19" 1.91" 0.46"
4411-10-12S - -12 7/8-14 3.40" 1.83" 0.55"
4411-12S 259-4411-12 -12 1-1/16-12 3.46" 1.92" 0.55"
4411-14-12S - -12 1-3/16-12 3.56" 1.99" 0.55"
4411-16S 259-4411-16 -16 1-5/16-12 3.19" 1.93" 0.82"
4411-20S - -20 1-5/8-12 3.43" 2.07" 1.05"
4411-20-24S - -24 1-5/8-12 3.65" 2.19" 1.06"
4411-24S - -24 1-7/8-12 3.68" 2.22" 1.28"
4411-32S - -32 2-1/2-12 4.39" 2.55" 1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat
