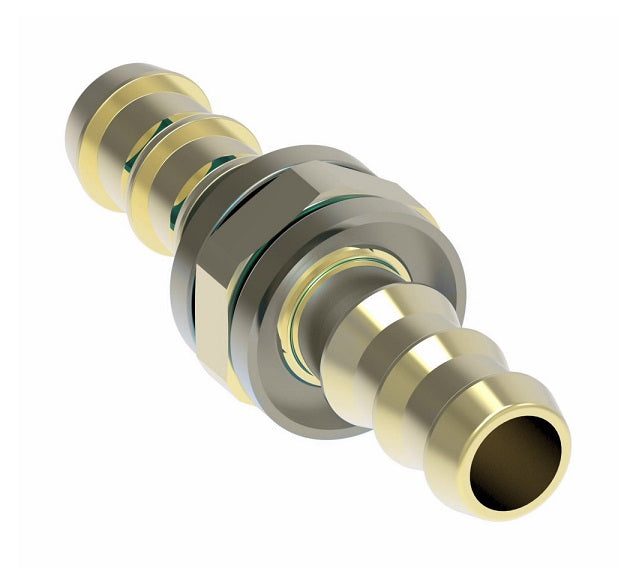

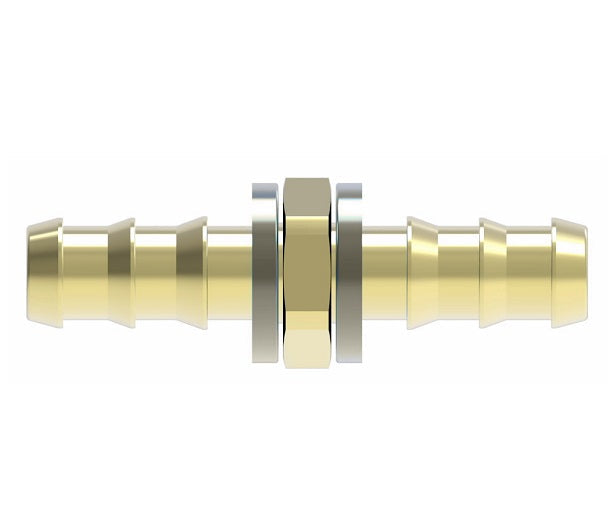

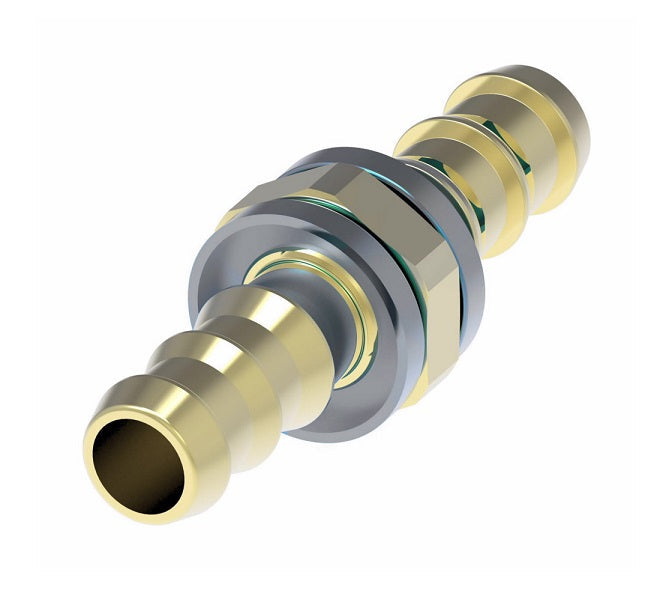

4772-4B Aeroquip by Danfoss | Hose Mender Socketless Reusable Hose Fitting | -04 Push-On Hose Barb x -04 Push-On Hose Barb | Brass
4772-4B Aeroquip by Danfoss | Hose Mender Socketless Reusable Hose Fitting | -04 Push-On Hose Barb x -04 Push-On Hose Barb | Brass
4772-4B Aeroquip by Danfoss | Hose Mender Socketless Reusable Hose Fitting | -04 Push-On Hose Barb x -04 Push-On Hose Barb | Brass
4772-4B Aeroquip by Danfoss | Hose Mender Socketless Reusable Hose Fitting | -04 Push-On Hose Barb x -04 Push-On Hose Barb | Brass

4772-4B Aeroquip by Danfoss | Hose Mender Socketless Reusable Hose Fitting | -04 Push-On Hose Barb x -04 Push-On Hose Barb | Brass

$4.80 - $4.80
$4.80
$4.80 - $4.80
$4.80

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Hose Mender - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4772-4B Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Reusable Hose End, 1/4in Push-On Hose Barb
Material(s): Brass
Compatible with the following Series: 2556 Series  |   2565 Series  |   FC332 Series  |   FC647 Series  |   H201 Series
Technical Info:
Brass
Part Number 		Hose Size Thread A D EØ
4772-4B -04 1.91 0.41" 0.17"
4772-6B -06 2.14" 0.41" 0.30"
4772-8B -08 2.5" 0.47" 0.39"
4772-10B -10 3.61" 0.53" 0.48"
4772-12B -12 3.63" 0.60" 0.61"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
