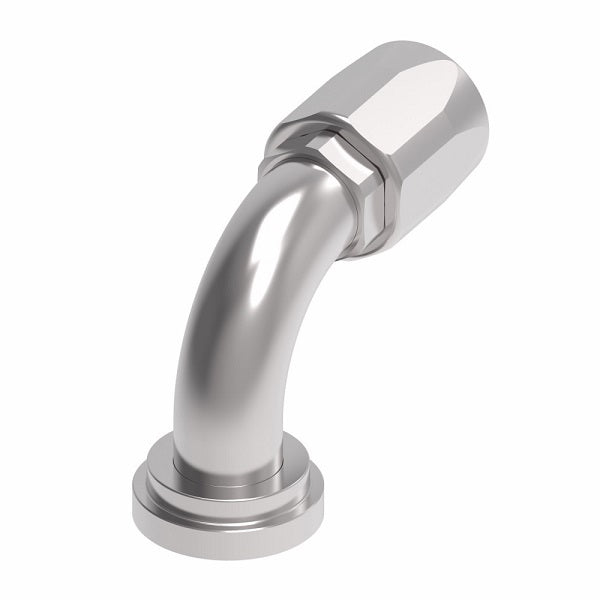

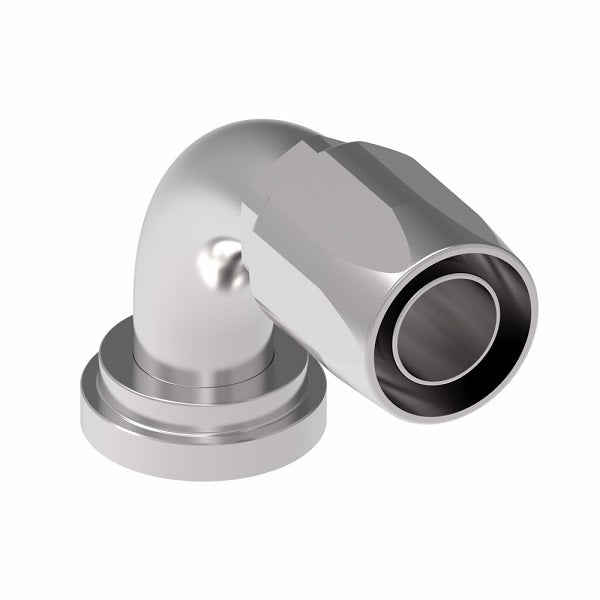

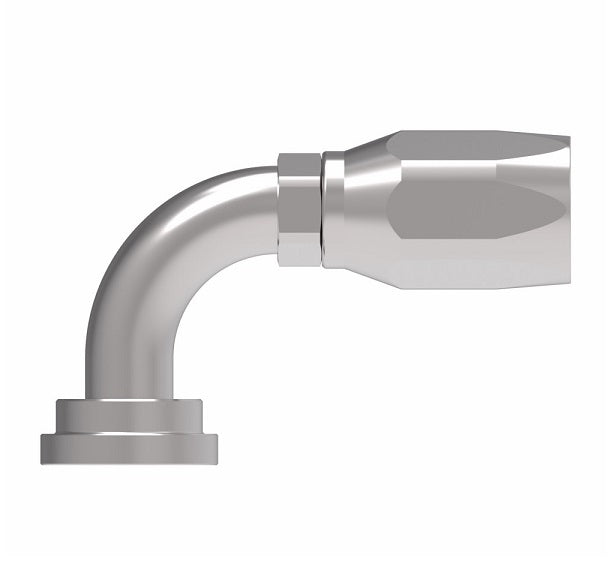

4779-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel
4779-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel
4779-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel
4779-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel

4779-24S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -24 Code 61 Split Flange x -24 Reusable Hose End | Steel

$192.57 - $192.57
$192.57
$192.57 - $192.57
$192.57

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4779-24S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Brass & Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4779-12S - -12 1.50" 3.74" 2.17" 0.55" 2.12"
4779-16-12S - -12 1.75" 3.74" 2.17" 0.55" 2.12"
4779-16S - -16 1.75" 3.55" 2.28" 0.82" 2.38"
4779-20-16S - -16 2.00" 3.55" 2.28" 0.82" 2.38"
4779-20S - -20 2.00" 4.02" 2.65" 1.05" 2.50"
4779-24-20S - -16 2.38" 4.02" 2.65" 1.05" 2.50"
4779-20-24S - -24 2.00" 4.11" 2.66" 1.05" 2.50"
4779-24S - -24 2.38" 4.42" 2.97" 1.28" 2.75"
4779-32-24S - -24 2.81" - 2.97" 1.26" 2.75"
4779-24-32S - -32 2.38" 4.83" 2.98" 1.37" 2.75"
4779-32S - -32 2.81" 5.39" 3.55" 1.75" 3.25"
4779-40-32S - -32 3.31" 5.39" 3.55" 1.75" 3.31"
- 39-4779-40 -40 3.31" - 5.36" 2.21" 5.25"
