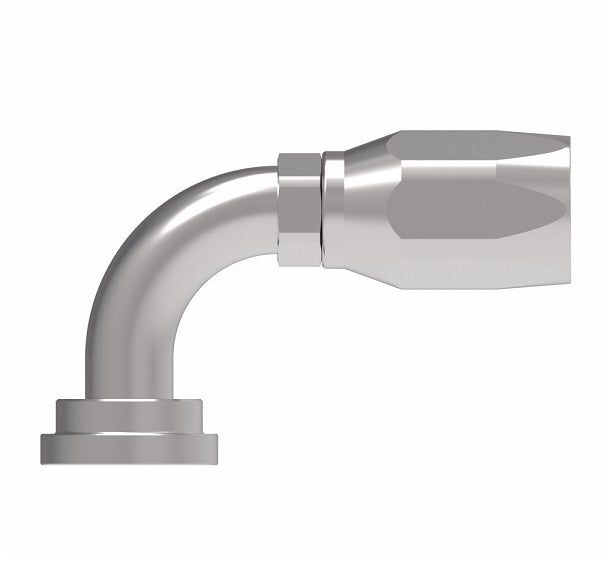

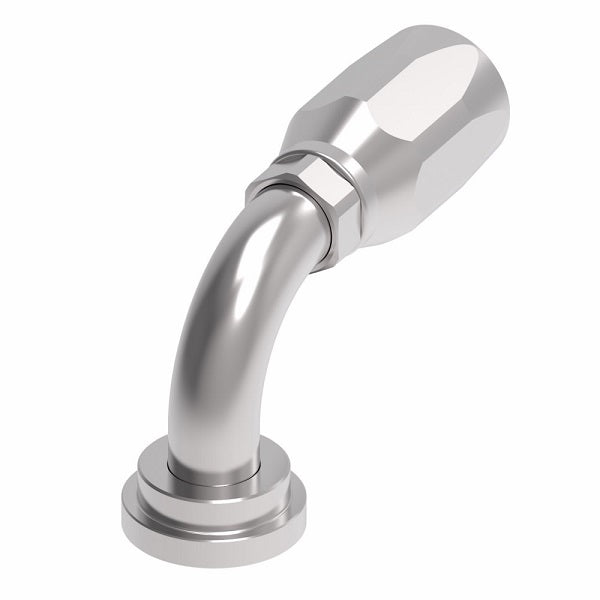

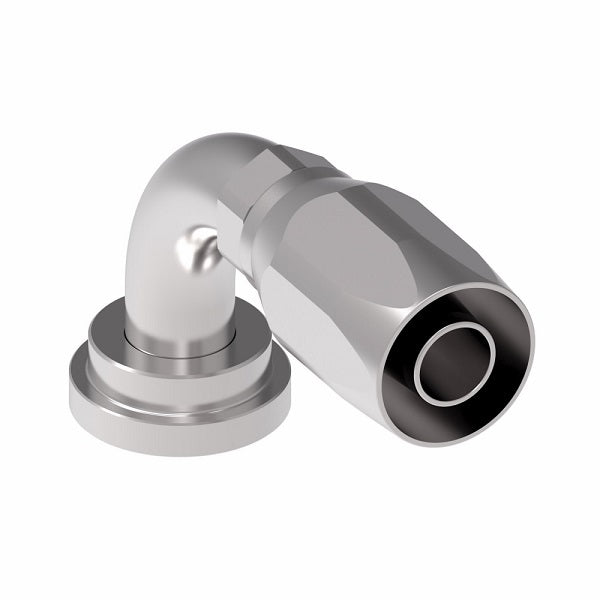

4779-12S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel

4779-12S Aeroquip by Danfoss | SAE Code 61 Split Flange 90° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel | Pack of 10

$1,101.85 - $1,101.85

$1,101.85

$1,101.85 - $1,101.85

$1,101.85

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4779-12S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Code 61 Flange, 3/4in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass & Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
4779-12S	-	-12	1.50"	3.74"	2.17"	0.55"	2.12"
4779-16-12S	-	-12	1.75"	3.74"	2.17"	0.55"	2.12"
4779-16S	-	-16	1.75"	3.55"	2.28"	0.82"	2.38"
4779-20-16S	-	-16	2.00"	3.55"	2.28"	0.82"	2.38"
4779-20S	-	-20	2.00"	4.02"	2.65"	1.05"	2.50"
4779-24-20S	-	-16	2.38"	4.02"	2.65"	1.05"	2.50"
4779-20-24S	-	-24	2.00"	4.11"	2.66"	1.05"	2.50"
4779-24S	-	-24	2.38"	4.42"	2.97"	1.28"	2.75"
4779-32-24S	-	-24	2.81"	-	2.97"	1.26"	2.75"
4779-24-32S	-	-32	2.38"	4.83"	2.98"	1.37"	2.75"
4779-32S	-	-32	2.81"	5.39"	3.55"	1.75"	3.25"
4779-40-32S	-	-32	3.31"	5.39"	3.55"	1.75"	3.31"
-	39-4779-40	-40	3.31"	-	5.36"	2.21"	5.25"
