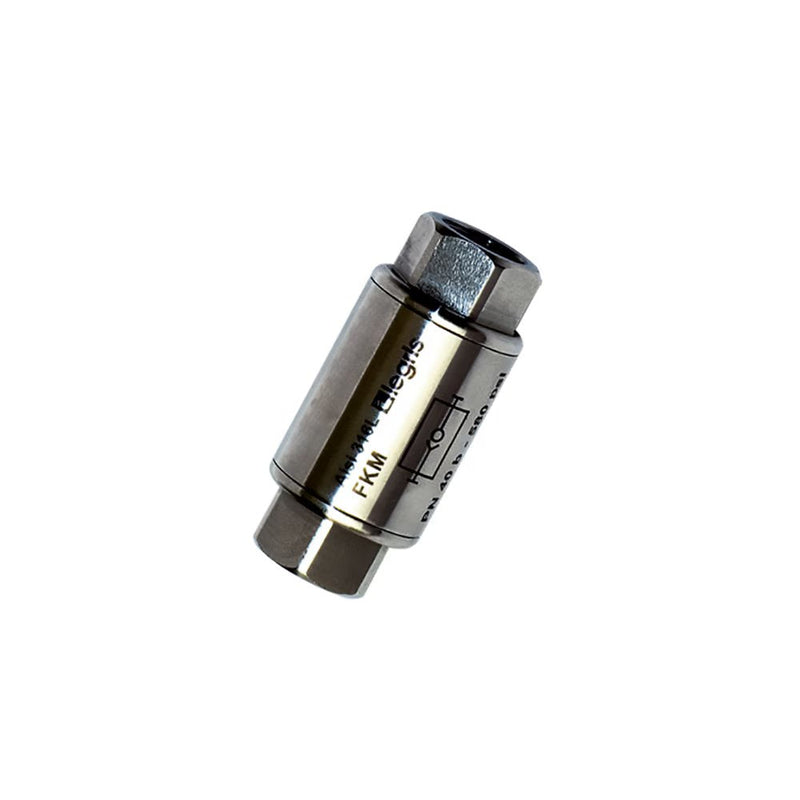

4890 34 34 by Parker | Legris Non-Return Valve | 1" Female BSPP Thread | 90 mm Length | Straight | 316L Stainless Steel

4890 34 34 by Parker | Legris Non-Return Valve | 1" Female BSPP Thread | 90 mm Length | Straight | 316L Stainless Steel

Save $17.19 Save $17.19
$236.39
$236.39 - $236.39
$236.39
$219.20
$219.20 - $219.20
$219.20

by Parker Hannifin
Stainless Steel Non-Return Valves:4890 Non-Return Valve, Female BSPP Thread
Specifications for Variant SKU: 4890 34 34 Parker
Series: 4890 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel, 302 Stainless Steel
Seal Material(s): FKM
Special Properties: Corrosion Resistance, Silicone Free
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: .5 to 40 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Mechanical robustness and reduced dimensions
  • Suitable for use with many chemicals or in corrosive environments
  • Flow direction symbol protects against incorrect installation
  • Smooth external surfaces contribute to equipment cleanliness
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: 316L Stainless Steel
  • Seal: FKM
  • Poppet: 316L Stainless Steel
  • Spring: 302 Stainless Steel
Part Number Diameter Nominal (DN) C F G L Kg
4890 10 10 10 mm 1/8" 17 mm 22 mm 50 mm .082 Kg
4890 13 13 10 mm 1/4" 17 mm 22 mm 50 mm .073 Kg
4890 17 17 15 mm 3/8" 22 mm 30 mm 71 mm .183 Kg
4890 21 21 15 mm 1/5" 24 mm 30 mm 71 mm .182 Kg
4890 27 27 20 mm 3/4" 32 mm 42 mm 84 mm .288 Kg
4890 34 34 25 mm 1" 38 mm 42 mm 90 mm .418 Kg
