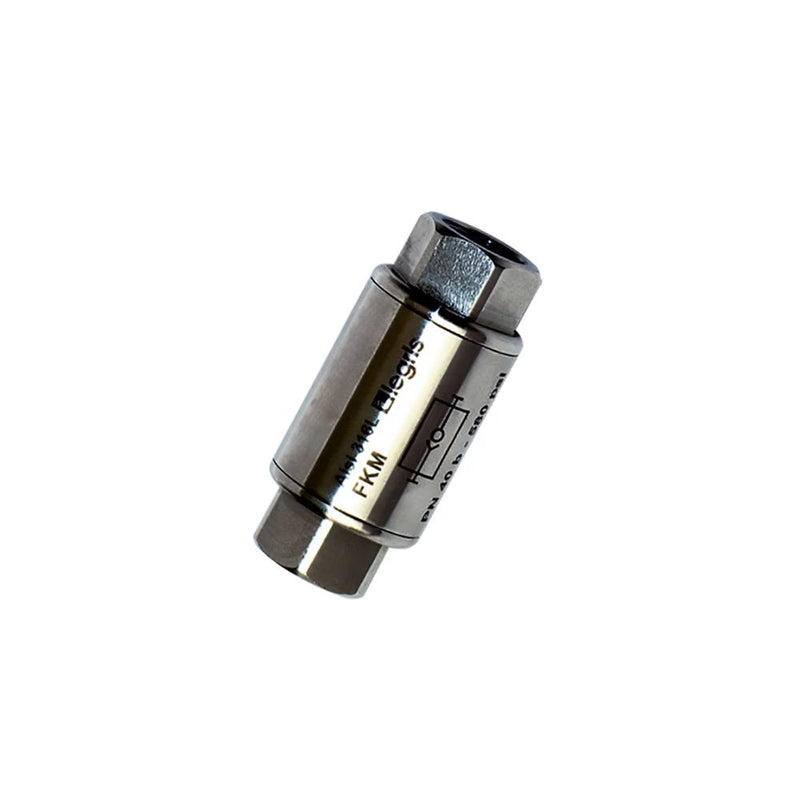

4890 27 27 by Parker | Legris Non-Return Valve | 3/4" Female BSPP Thread | 84 mm Length | Straight | 316L Stainless Steel

4890 27 27 by Parker | Legris Non-Return Valve | 3/4" Female BSPP Thread | 84 mm Length | Straight | 316L Stainless Steel

Save $113.36 Save $113.36
$283.40
$283.40 - $283.40
$283.40
$170.04
$170.04 - $170.04
$170.04

by Parker Hannifin
Stainless Steel Non-Return Valves:4890 Non-Return Valve, Female BSPP Thread
Specifications for Variant SKU: 4890 27 27 Parker
Series: 4890 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel, 302 Stainless Steel
Seal Material(s): FKM
Special Properties: Corrosion Resistance, Silicone Free
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: .5 to 40 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Mechanical robustness and reduced dimensions
  • Suitable for use with many chemicals or in corrosive environments
  • Flow direction symbol protects against incorrect installation
  • Smooth external surfaces contribute to equipment cleanliness
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: 316L Stainless Steel
  • Seal: FKM
  • Poppet: 316L Stainless Steel
  • Spring: 302 Stainless Steel
Part Number Diameter Nominal (DN) C F G L Kg
4890 10 10 10 mm 1/8" 17 mm 22 mm 50 mm .082 Kg
4890 13 13 10 mm 1/4" 17 mm 22 mm 50 mm .073 Kg
4890 17 17 15 mm 3/8" 22 mm 30 mm 71 mm .183 Kg
4890 21 21 15 mm 1/5" 24 mm 30 mm 71 mm .182 Kg
4890 27 27 20 mm 3/4" 32 mm 42 mm 84 mm .288 Kg
4890 34 34 25 mm 1" 38 mm 42 mm 90 mm .418 Kg
