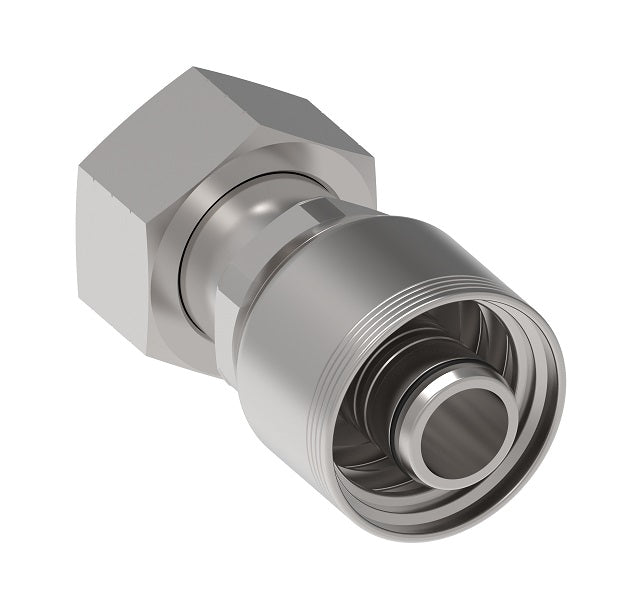

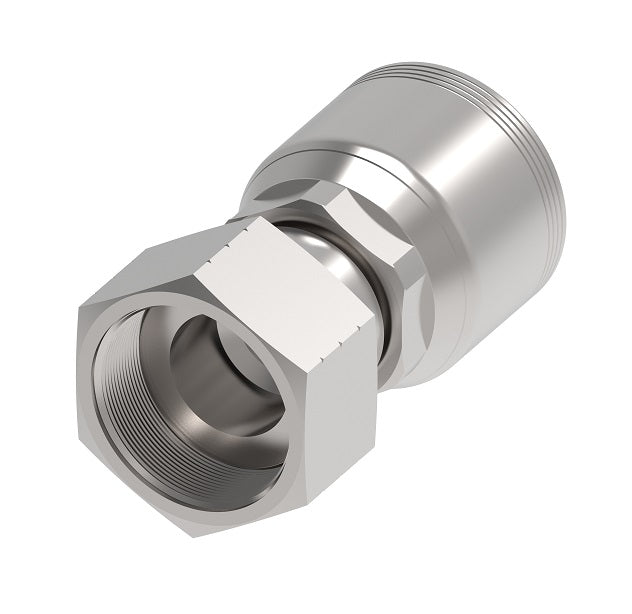

4S16FR16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x-16 Hose Barb | Steel
4S16FR16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x-16 Hose Barb | Steel
4S16FR16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x-16 Hose Barb | Steel
4S16FR16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x-16 Hose Barb | Steel

4S16FR16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x-16 Hose Barb | Steel

$58.42 - $58.42
$58.42
$58.42 - $58.42
$58.42

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FR) - Straight
Specifications for Variant SKU: 4S16FR16 Danfoss
Brand: Aeroquip
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series  |   EC600 Series  |   H430 Series  |   H430R Series  |   EC525 Series  |   H471 Series  |   H464 Series  |   H485 Series
Technical Info:
Steel
Part Number 		Dash Size DN Hose Dash Size Thread A D EØ Hex 1

 Hex 2
4S8FR10 -08 16 -10 13/16-16 2.54" 1.51" 0.36" 15/16" 15/16"
4S10FR10 -10 16 -10 1-14 2.62" 1.61" 0.45" 1-3/16" 1-1/16"
4S12FR10 -12 16 -10 1-3/16-12 2.66" 1.63" 0.50" 1-3/16" 1.42"
4S12FR12 -12 19 -12 1-3/16-12 - - - - -
4S12FR16 -12 25 -16 1-3/16-12 - - - - -
4S16FR12 -16 19 -12 1-7/16-12 - - - - -
4S16FR16 -16 25 -16 1-7/16-12 - - - - -
4S20FR20 -20 31 -20 1-11/16-12 - - - - -
