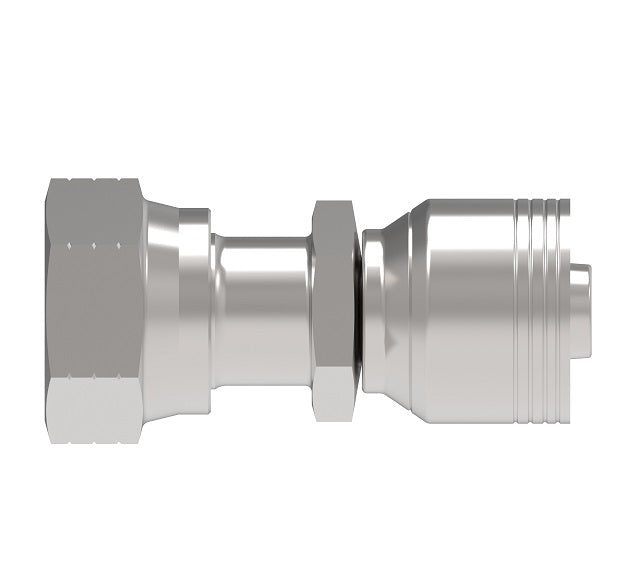

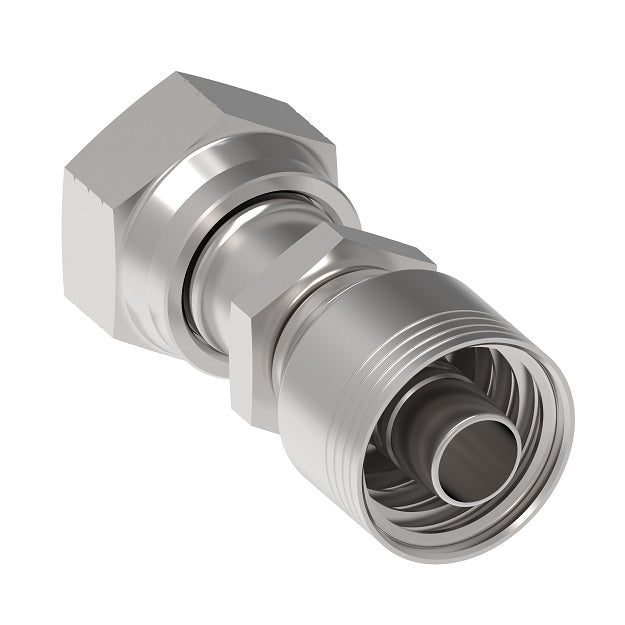

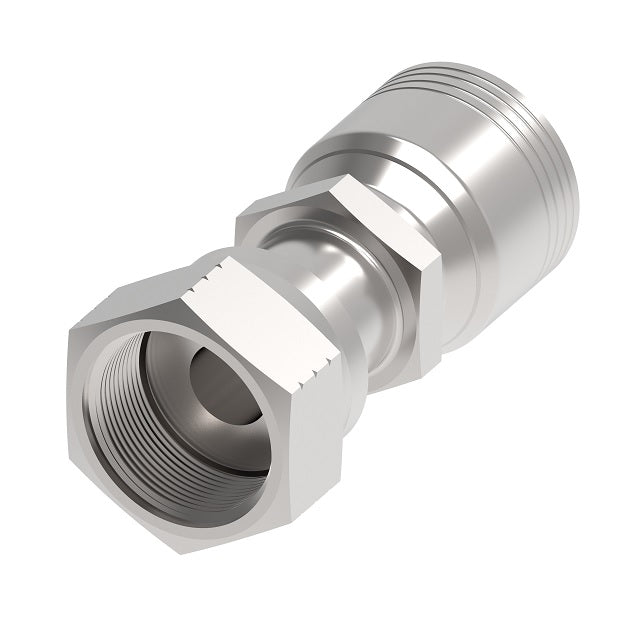

4S12FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x-12 Hose Barb | Steel

4S12FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x-12 Hose Barb | Steel | Pack of 10

$635.78 - $635.78

$635.78

$635.78 - $635.78

$635.78

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FR) - Straight

Package Quantity: 10 Units

Specifications for Variant SKU: 4S12FR12 Danfoss \| 10 \|
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series \| EC600 Series \| H430 Series \| H430R Series \| EC525 Series \| H471 Series \| H464 Series \| H485 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	Hex 1	Hex 2
4S8FR10	-08	16	-10	13/16-16	2.54"	1.51"	0.36"	15/16"	15/16"
4S10FR10	-10	16	-10	1-14	2.62"	1.61"	0.45"	1-3/16"	1-1/16"
4S12FR10	-12	16	-10	1-3/16-12	2.66"	1.63"	0.50"	1-3/16"	1.42"
4S12FR12	-12	19	-12	1-3/16-12	-	-	-	-	-
4S12FR16	-12	25	-16	1-3/16-12	-	-	-	-	-
4S16FR12	-16	19	-12	1-7/16-12	-	-	-	-	-
4S16FR16	-16	25	-16	1-7/16-12	-	-	-	-	-
4S20FR20	-20	31	-20	1-11/16-12	-	-	-	-	-
