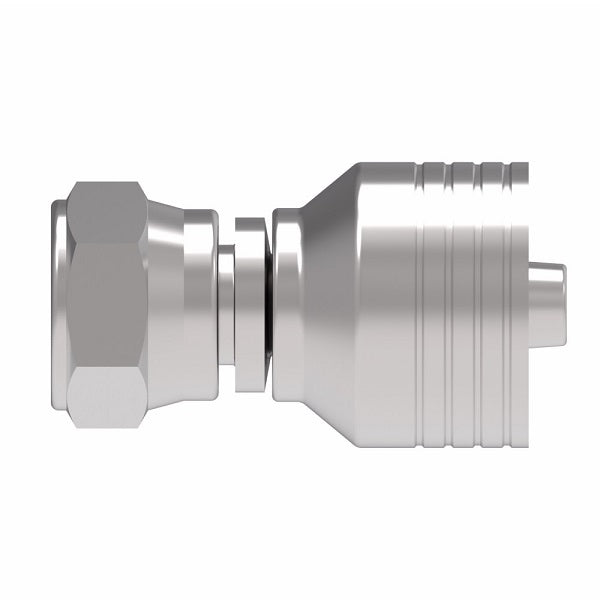

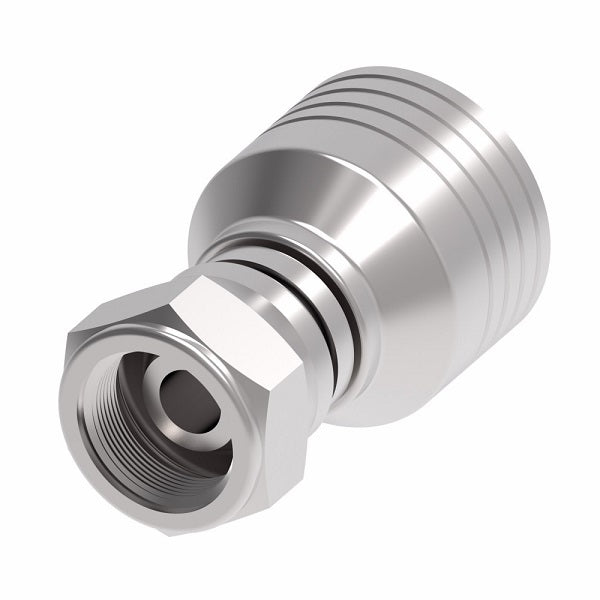

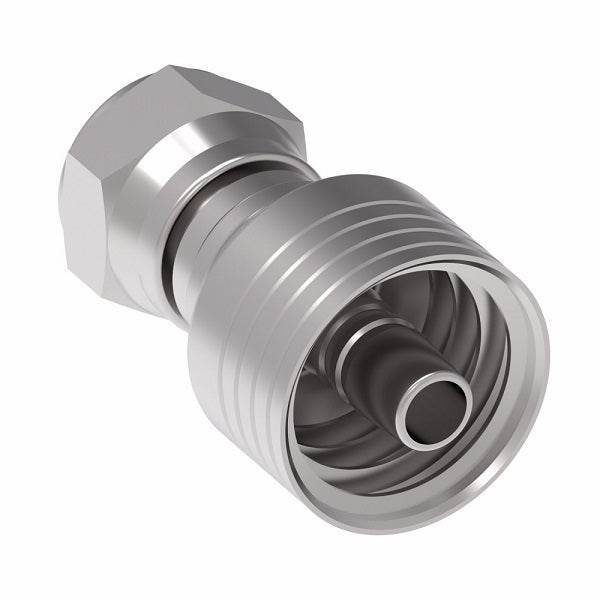

4S8BF8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel (BF) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel

Original price $26.24 - Original price $26.24
Original price
$26.24
$26.24 - $26.24
Current price $26.24

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S8BF8 Danfoss
Shape (Orientation): Straight
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number
Terminal End Hose Size Thread A D E&Oslash Hex 1

Dash Size DN Dash Size
4S6BF6 -06 - -06 G 3/8 1.83" 0.83" 0.26" 0.87"
4S8BF8 -08 - -08 G 1/2 2.11" 0.94" 0.38" 1.06"
4S12BF12 -12 19 -12 G 3/4" 2.61" 1.18" 0.56" 32mm
4S16BP12 -16 19 -12 G 1" 2.70" 1.27" 0.56" 41mm
4S16BF16 -16 25 -16 G 1" 2.80" 1.27" 0.76" 41mm
4S20BF16 -20 25 -16 G 1-1/4" 2.85" 1.29" 0.76" 50mm
4S20BF20 -20 31 -20 G 1-1/4" 3.26" 1.29" 0.99" 50mm
4S24BF24 -24 38 -24 G 1-1/2" 4.64" 1.57" 1.22" 55mm
4S32BF32 -32 51 -32 G 2" 4.76" 1.69" 1.66" 70mm
