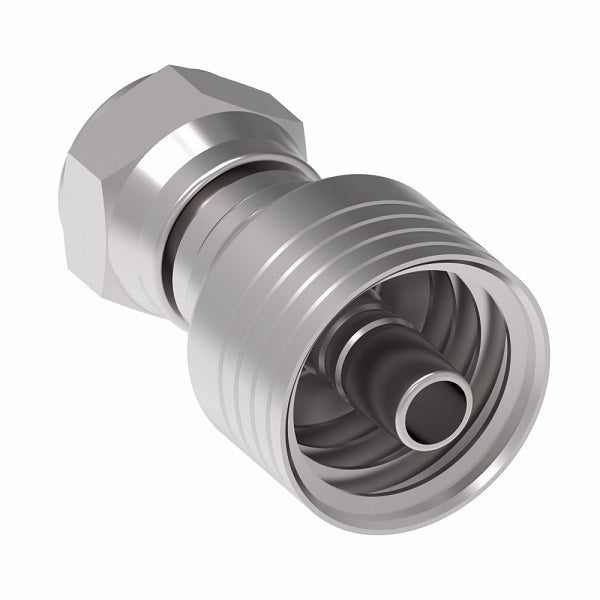

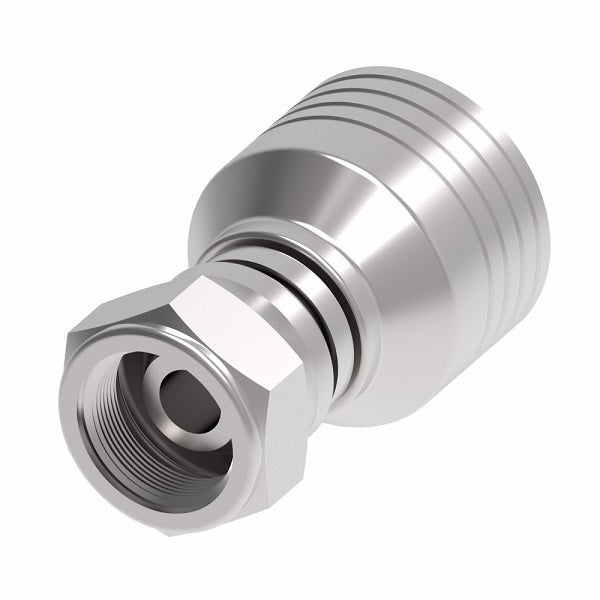

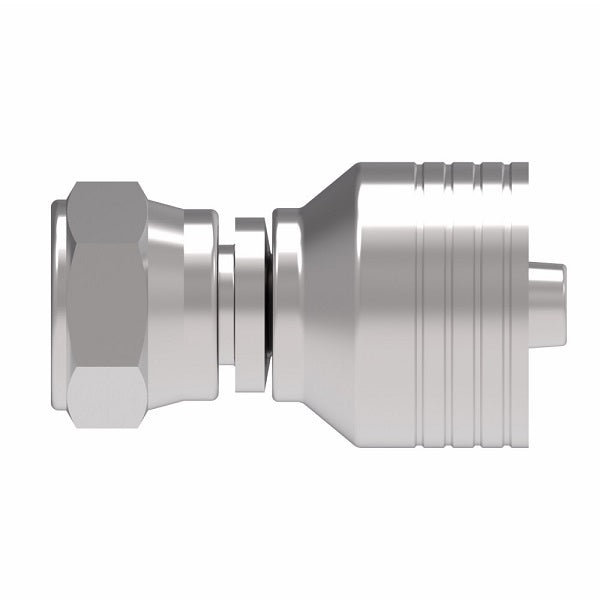

4S6BF6 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel (BF) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel

4S6BF6 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel (BF) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$235.20 - $235.20

$235.20

$235.20 - $235.20

$235.20

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S6BF6 Danfoss \| 10 \|
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parallel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S6BF6	-06	-	-06	G 3/8	1.83"	0.83"	0.26"	0.87"
4S8BF8	-08	-	-08	G 1/2	2.11"	0.94"	0.38"	1.06"
4S12BF12	-12	19	-12	G 3/4"	2.61"	1.18"	0.56"	32mm
4S16BP12	-16	19	-12	G 1"	2.70"	1.27"	0.56"	41mm
4S16BF16	-16	25	-16	G 1"	2.80"	1.27"	0.76"	41mm
4S20BF16	-20	25	-16	G 1-1/4"	2.85"	1.29"	0.76"	50mm
4S20BF20	-20	31	-20	G 1-1/4"	3.26"	1.29"	0.99"	50mm
4S24BF24	-24	38	-24	G 1-1/2"	4.64"	1.57"	1.22"	55mm
4S32BF32	-32	51	-32	G 2"	4.76"	1.69"	1.66"	70mm
