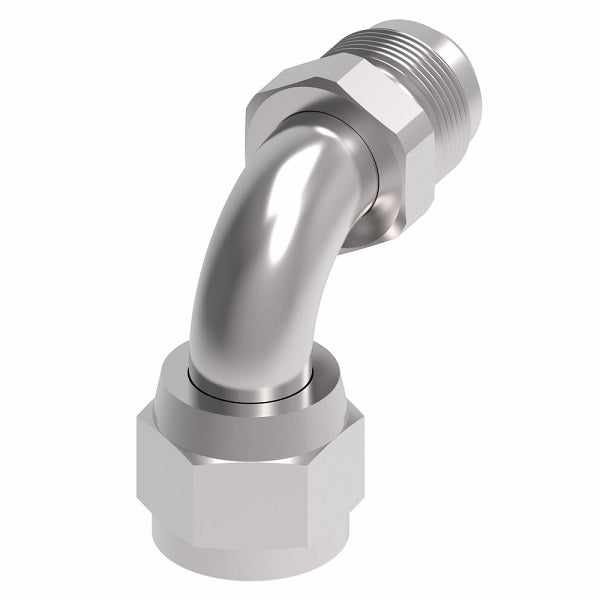

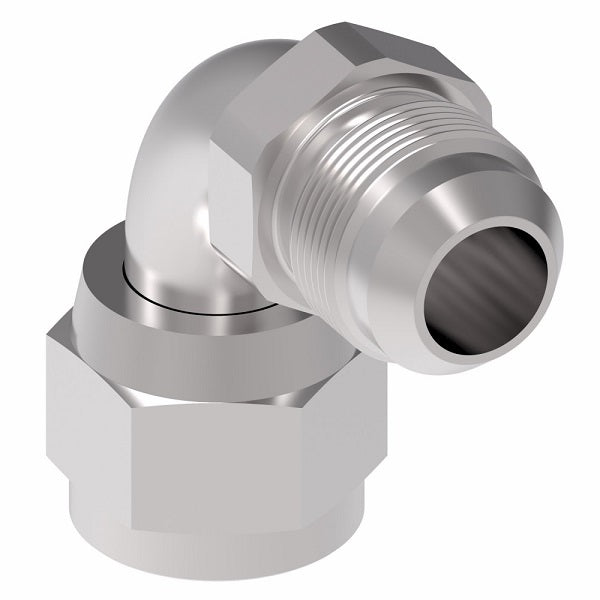

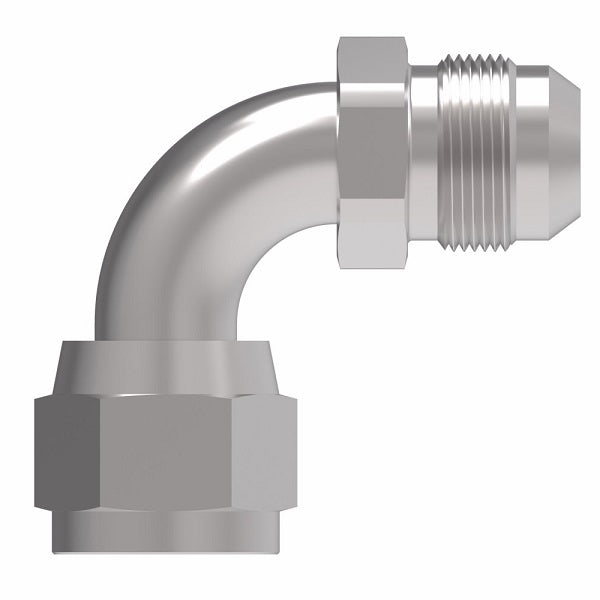

500454-6S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -06 Female 37° JIC Flare Swivel x -06 Male 37° JIC Flare | Steel

500454-6S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -06 Female 37° JIC Flare Swivel x -06 Male 37° JIC Flare | Steel

Name: 500454-6S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -06 Female 37° JIC Flare Swivel x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 500454-6S Danfoss
Price: 19.36 USD
Availability: InStock

$19.36 - $19.36

$19.36

$19.36 - $19.36

$19.36

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Short Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 500454-6S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Male JIC
Material(s):	Steel
Special Properties:	Swivel, Short Drop


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
500454-4S	0.25"	7/16-20	7/16-20	0.68"	1.12"
500454-6S	0.38"	9/16-18	9/16-18	0.85"	1.31"
500454-8S	0.50"	3/4-16	3/4-16	1.09"	1.66"
500454-10S	0.63"	7/8-14	7/8-14	1.23"	1.82"
500454-12S	0.75"	1-1/16-12	1-1/16-12	1.82"	2.49"
500454-16S	1.00"	1-5/16-12	1-5/16-12	2.39"	2.79"
500454-20S	1.25"	1-5/8-12	1-5/8-12	2.75"	3.14"
