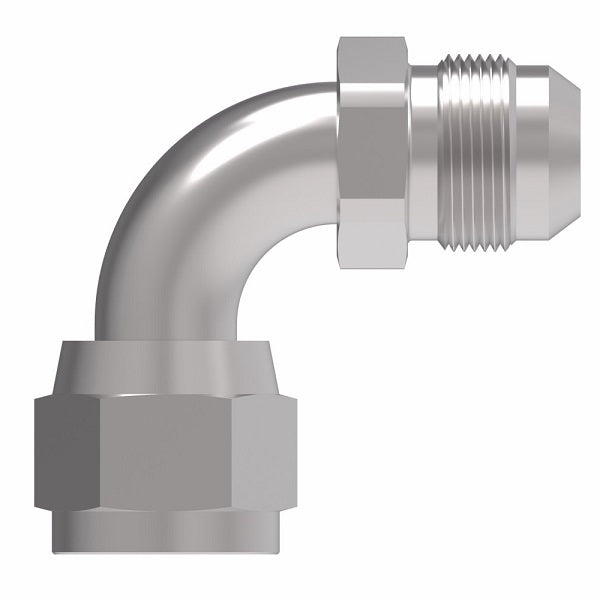

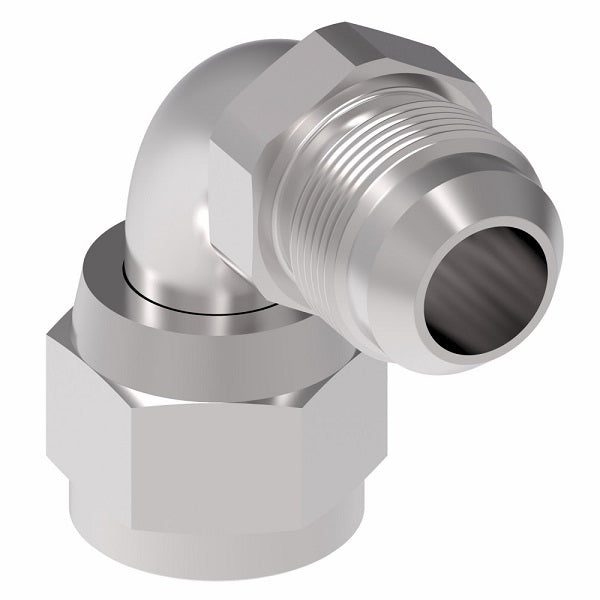

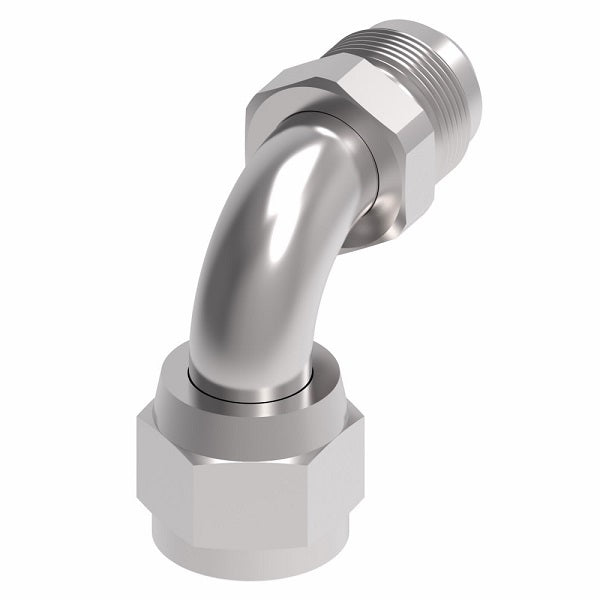

500454-8S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel

500454-8S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel

Name: 500454-8S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 500454-8S Danfoss
Price: 31.2 USD
Availability: InStock

$31.20 - $31.20

$31.20

$31.20 - $31.20

$31.20

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Short Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 500454-8S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Male JIC
Material(s):	Steel
Special Properties:	Swivel, Short Drop


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
500454-4S	0.25"	7/16-20	7/16-20	0.68"	1.12"
500454-6S	0.38"	9/16-18	9/16-18	0.85"	1.31"
500454-8S	0.50"	3/4-16	3/4-16	1.09"	1.66"
500454-10S	0.63"	7/8-14	7/8-14	1.23"	1.82"
500454-12S	0.75"	1-1/16-12	1-1/16-12	1.82"	2.49"
500454-16S	1.00"	1-5/16-12	1-5/16-12	2.39"	2.79"
500454-20S	1.25"	1-5/8-12	1-5/8-12	2.75"	3.14"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
