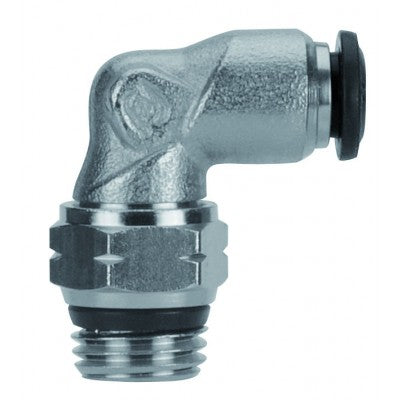

50110N-12-3/8" AIGNEP | 50N Series | Swivel Male 90° Elbow | 12mm Tube x 3/8" Swift-Fit Male | Pack of 10
50110N-12-3/8 by AIGNEP | 50N Series | Swivel Male | 12mm Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10
50110N-12-3/8" AIGNEP | 50N Series | Swivel Male 90° Elbow | 12mm Tube x 3/8" Swift-Fit Male | Pack of 10

50110N-12-3/8 by AIGNEP | 50N Series | Swivel Male | 12mm Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10

Save $32.17 Save $32.17
$80.42
$80.42 - $80.42
$80.42
$48.25
$48.25 - $48.25
$48.25

Package Quantity: 10 ea

Specifications for Variant SKU: 50110N-12-3/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): 90 Degree
Ends Configuration: 12mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2 CH1 CH2
50110N-4-1/8 4 mm 1/8" 0.216" 5.5 mm 18 mm 19.5 mm 9 mm 13 mm
50110N-4-1/4 4 mm 1/4" 0.276" 7 mm 18 mm 21 mm 9 mm 15 mm
50110N-5-1/8 5 mm 1/8" 0.216" 5.5 mm 20 mm 21.5 mm 11 mm 13 mm
50110N-6-1/8 6 mm 1/8" 0.216" 5.5 mm 21 mm 21.5 mm 11 mm 13 mm
50110N-6-1/4 6 mm 1/4" 0.276" 7 mm 21 mm 23 mm 11 mm 15 mm
50110N-8-1/8 8 mm 1/8" 0.216" 5.5 mm 22.5 mm 22.5 mm 12 mm 13 mm
50110N-8-1/4 8 mm 1/4" 0.276" 7 mm 22.5 mm 22.5 mm 12 mm 15 mm
50110N-8-3/8 8 mm 3/8" 0.295" 7.5 mm 22.5 mm 23 mm 12 mm 17 mm
50110N-8-1/2 8 mm 1/2" 0.374" 9 mm 22.5 mm 25.5 mm 12 mm 21 mm
50110N-10-1/4 10 mm 1/4" 0.276" 7 mm 26.5 mm 26.5 mm 14 mm 17 mm
50110N-10-3/8 10 mm 3/8" 0.295" 7.5 mm 26.5 mm 24.5 mm 14 mm 17 mm
50110N-10-1/2 10 mm 1/2" 0.374" 9 mm 26.5 mm 27 mm 14 mm 20 mm
50110N-12-3/8 12 mm 3/8" 0.295" 7.5 mm 31.5 mm 26.5 mm 16 mm 20 mm
50110N-12-1/2 12 mm 1/2" 0.374" 9 mm 31.5 mm 29 mm 16 mm 21 mm
50110N-14-3/8 14 mm 3/8" 0.295" 7.5 mm 31.5 mm 27 mm 16 mm 20 mm
50110N-14-1/2 14 mm 1/2" 0.374" 9 mm 31.5 mm 29.5 mm 16 mm 21 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
