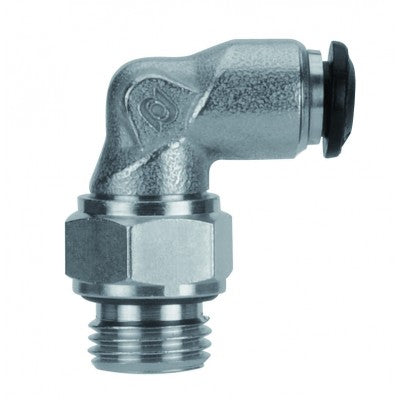

50115N-6-M5 AIGNEP | 50N Series | Swivel 90° Elbow | 6mm Tube x M5 Male | Pack of 10

50115N-6-M5 by AIGNEP | 50N Series | Swivel | 6mm Tube x M5 Male | 90° Elbow | Pack of 10

Save $16.13

$40.33

$40.33 - $40.33

$40.33

$24.20

$24.20 - $24.20

$24.20

Package Quantity: 10 ea

Specifications for Variant SKU: 50115N-6-M5 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass

Swivel Elbow - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

Product Number	Tube	Thread Type	A	B (IN)	B	L1	L2	CH1	CH2
50115N-3-M5	3 mm	BSPP	M5	0.138"	3.5 mm	16.5 mm	17.5 mm	9 mm	8 mm
50115N-4-M5	4 mm	BSPP	M5	0.138"	3.5 mm	18 mm	17.5 mm	9 mm	8 mm
50115N-4-1/8	4 mm	BSPP	1/8"	0.216"	5.5 mm	18 mm	18 mm	9 mm	13 mm
50115N-4-1/4	4 mm	BSPP	1/4"	0.276"	7 mm	18 mm	20 mm	9 mm	16 mm
50115N-5-M5	5 mm	BSPP	M5	0.138"	3.5 mm	20 mm	20 mm	11 mm	11 mm
50115N-5-1/8	5 mm	BSPP	1/8"	0.216"	5.5 mm	20 mm	20 mm	11 mm	13 mm
50115N-6-M5	6 mm	BSPP	M5	0.138"	3.5 mm	21 mm	20 mm	11 mm	11 mm
50115N-6-1/8	6 mm	BSPP	1/8"	0.216"	5.5 mm	21 mm	20 mm	11 mm	13 mm
50115N-6-1/4	6 mm	BSPP	1/4"	0.276"	7 mm	21 mm	21.5 mm	11 mm	16 mm
50115N-8-1/8	8 mm	BSPP	1/8"	0.216"	5.5 mm	22.5 mm	21 mm	12 mm	13 mm
50115N-8-1/4	8 mm	BSPP	1/4"	0.276"	7 mm	22.5 mm	21.5 mm	12 mm	16 mm
50115N-8-3/8	8 mm	BSPP	3/8"	0.314"	8 mm	22.5 mm	23.5 mm	12 mm	20 mm
50115N-8-1/2	8 mm	BSPP	1/2"	0.375"	9.5 mm	22.5 mm	25 mm	12 mm	25 mm
50115N-10-1/4	10 mm	BSPP	1/4"	0.276"	7 mm	26.5 mm	25.5 mm	14 mm	16 mm
50115N-10-3/8	10 mm	BSPP	3/8"	0.314"	8 mm	26.5 mm	25 mm	14 mm	20 mm
50115N-10-1/2	10 mm	BSPP	1/2"	0.375"	9.5 mm	26.5 mm	26.5 mm	14 mm	25 mm
50115N-12-1/4	12 mm	BSPP	1/4"	0.314"	8 mm	31.5 mm	27.5 mm	16 mm	20 mm
50115N-12-3/8	12 mm	BSPP	3/8"	0.375"	9.5 mm	31.5 mm	27 mm	16 mm	25 mm
50115N-12-1/2	12 mm	BSPP	1/2"	0.314"	8 mm	31.5 mm	28.5 mm	16 mm	20 mm
50115N-14-3/8	14 mm	BSPP	3/8"	0.375"	9.5 mm	31.5 mm	27.5 mm	16 mm	25 mm
50115N-14-1/2	14 mm	BSPP	1/2"	0.276"	7 mm	20 mm	29 mm	11 mm	16 mm
50115N-6-M12x1	6 mm	BSPP	M12 x 1	0.295"	7.5 mm	20 mm	22 mm	11 mm	16 mm
50115N-6-M12x1.25	6 mm	BSPP	M12 x 1.25	0.295"	7.5 mm	20 mm	22 mm	11 mm	16 mm
50115N-6-M12x1.5	6 mm	BSPP	M12 x 1.5	0.295"	7.5 mm	20 mm	22 mm	11 mm	16 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
