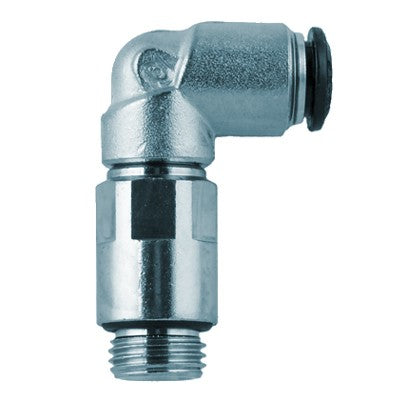

50125N-8-1/8" AIGNEP | 50N Series | Swivel Male Extended 90° Elbow | 8mm Tube x 1/8" BSPP Male | Pack of 10

50125N-8-1/8 by AIGNEP | 50N Series | Swivel Male Extended | 8mm Tube x 1/8" BSPP Male | 90° Elbow | Pack of 10

Save $22.59

$56.47

$56.47 - $56.47

$56.47

$33.88

$33.88 - $33.88

$33.88

Package Quantity: 10 ea

Specifications for Variant SKU: 50125N-8-1/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 1/8in Male BSPP
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male Extended Elbow - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
50125N-4-1/8	4 mm	1/8"	5.5 mm	18 mm	30 mm	9 mm	12 mm	10 mm
50125N-4-1/4	4 mm	1/4"	7 mm	18 mm	32 mm	9 mm	15 mm	10 mm
50125N-5-1/8	5 mm	1/4"	5.5 mm	20 mm	34.5 mm	11 mm	12 mm	12.5 mm
50125N-6-1/8	6 mm	1/8"	5.5 mm	21 mm	34.5 mm	11 mm	12 mm	12.5 mm
50125N-6-1/4	6 mm	1/4"	7 mm	21 mm	36 mm	11 mm	15 mm	12.5 mm
50125N-8-1/8	8 mm	1/8"	5 mm	22.8 mm	37.5 mm	12 mm	12 mm	14.5 mm
50125N-8-1/4	8 mm	1/4"	7 mm	22.5 mm	38 mm	12 mm	15 mm	14.5 mm
50125N-8-3/8	8 mm	3/8"	8 mm	22.5 mm	40 mm	12 mm	18 mm	14.5 mm
50125N-10-1/4	10 mm	1/4"	7 mm	26.5 mm	45 mm	14 mm	16 mm	17.5 mm
50125N-10-3/8	10 mm	3/8"	8 mm	26.5 mm	44.5 mm	14 mm	18 mm	17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
