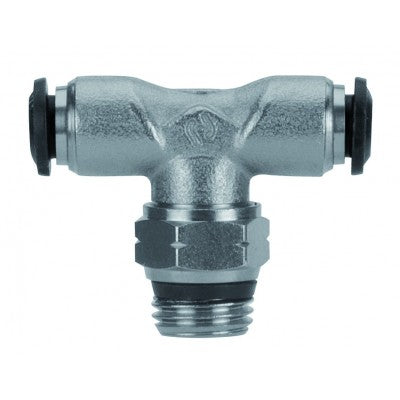

50210N-14-3/8" AIGNEP | 50N Series | Swivel Branch Tee | 14mm Tube x 3/8" Swift-Fit Male | Pack of 10
50210N-14-3/8 by AIGNEP | 50N Series | Swivel Branch | 14mm Tube x 3/8" Swift-Fit Male | Tee | Pack of 10
50210N-14-3/8" AIGNEP | 50N Series | Swivel Branch Tee | 14mm Tube x 3/8" Swift-Fit Male | Pack of 10

50210N-14-3/8 by AIGNEP | 50N Series | Swivel Branch | 14mm Tube x 3/8" Swift-Fit Male | Tee | Pack of 10

Save $53.68 Save $53.68
$134.20
$134.20 - $134.20
$134.20
$80.52
$80.52 - $80.52
$80.52

Package Quantity: 10 ea

Specifications for Variant SKU: 50210N-14-3/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Tee
Ends Configuration: 14mm Push-to-Connect, 3/8in Male Swift-Fit, 14mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Branch Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2
50210N-4-1/8 4 mm 1/8" 0.216" 5.5 mm 34 mm 20 mm
50210N-4-1/4 4 mm 1/4" 0.276" 7 mm 34 mm 21.5 mm
50210N-5-1/8 5 mm 1/8" 0.216" 5.5 mm 40 mm 22 mm
50210N-6-1/8 6 mm 1/8" 0.216" 5.5 mm 42 mm 22 mm
50210N-6-1/4 6 mm 1/4" 0.276" 7 mm 42 mm 23.5 mm
50210N-8-1/8 8 mm 1/8" 0.216" 5.5 mm 45 mm 25.5 mm
50210N-8-1/4 8 mm 1/4" 0.276" 7 mm 45 mm 25.5 mm
50210N-8-3/8 8 mm 3/8" 0.295" 7.5 mm 45 mm 26 mm
50210N-8-1/2 8 mm 1/2" 0.374" 9 mm 45 mm 28.5 mm
50210N-10-1/4 10 mm 1/4" 0.276" 7 mm 53 mm 29 mm
50210N-10-3/8 10 mm 3/8" 0.295" 7.5 mm 53 mm 27 mm
50210N-10-1/2 10 mm 1/2" 0.374" 9 mm 53 mm 29.5 mm
50210N-12-3/8 12 mm 3/8" 0.295" 7.5 mm 62.6 mm 29.5 mm
50210N-12-1/2 12 mm 1/2" 0.374" 9 mm 62.6 mm 32 mm
50210N-14-3/8 14 mm 3/8" 0.295" 7.5 mm 62.6 mm 29.5 mm
50210N-14-1/2 14 mm 1/2" 0.374" 9 mm 62.6 mm 32 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
