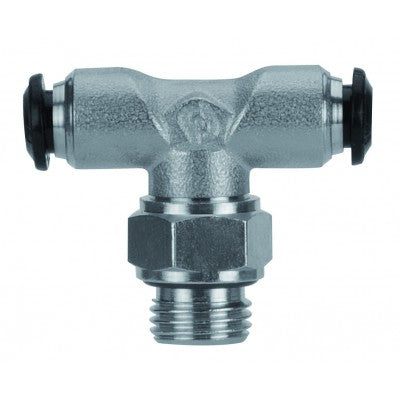

50215N-4-1/8" AIGNEP | 50N Series | Swivel Branch Tee | 4mm Tube x 1/8" BSPP Male | Pack of 10
50215N-4-1/8 by AIGNEP | 50N Series | Swivel Branch | 4mm Tube x 1/8" BSPP Male | Tee | Pack of 10
50215N-4-1/8" AIGNEP | 50N Series | Swivel Branch Tee | 4mm Tube x 1/8" BSPP Male | Pack of 10

50215N-4-1/8 by AIGNEP | 50N Series | Swivel Branch | 4mm Tube x 1/8" BSPP Male | Tee | Pack of 10

Save $22.78 Save $22.78
$56.95
$56.95 - $56.95
$56.95
$34.17
$34.17 - $34.17
$34.17

Package Quantity: 10 ea

Specifications for Variant SKU: 50215N-4-1/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Tee
Ends Configuration: 4mm Push-to-Connect, 1/8in Male BSPP, 4mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Branch Tee - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP
Product Number Tube Thread Type A B (IN) B L1 L2 CH1 CH2
50215N-3-M5 3 mm BSPP M5 0.138" 3.5 mm 33 mm 17 mm 9 mm 8 mm
50215N-4-M5 4 mm BSPP M5 0.138" 3.5 mm 34 mm 18 mm 9 mm 8 mm
50215N-4-1/8 4 mm BSPP 1/8" 0.216" 5.5 mm 34 mm 18.5 mm 9 mm 13 mm
50215N-4-1/4 4 mm BSPP 1/4" 0.276" 7 mm 34 mm 20 mm 9 mm 16 mm
50215N-5-M5 5 mm BSPP M5 0.138" 3.5 mm 40 mm 20.5 mm 11 mm 11 mm
50215N-6-M5 6 mm BSPP M5 0.138" 3.5 mm 42 mm 20.5 mm 11 mm 11 mm
50215N-6-1/8 6 mm BSPP 1/8" 0.216" 5.5 mm 42 mm 20.5 mm 11 mm 13 mm
50215N-6-1/4 6 mm BSPP 1/4" 0.276" 7 mm 42 mm 22 mm 11 mm 16 mm
50215N-8-1/8 8 mm BSPP 1/8" 0.216" 5.5 mm 45 mm 23.5 mm 13 mm 13 mm
50215N-8-1/4 8 mm BSPP 1/4" 0.276" 7 mm 45 mm 24 mm 13 mm 16 mm
50215N-8-3/8 8 mm BSPP 3/8" 0.314" 8 mm 45 mm 26 mm 13 mm 20 mm
50215N-8-1/2 8 mm BSPP 1/2" 0.375" 9.5 mm 45 mm 27.5 mm 13 mm 25 mm
50215N-10-1/4 10 mm BSPP 1/4" 0.276" 7 mm 45 mm 27.5 mm 14 mm 16 mm
50215N-10-3/8 10 mm BSPP 3/8" 0.314" 8 mm 53 mm 27 mm 14 mm 20 mm
50215N-10-1/2 10 mm BSPP 1/2" 0.375" 9.5 mm 53 mm 28.5 mm 14 mm 25 mm
50215N-12-3/8 12 mm BSPP 3/8" 0.375" 9.5 mm 62.5 mm 29.5 mm 16 mm 20 mm
50215N-12-1/2 12 mm BSPP 1/2" 0.314" 8 mm 62.5 mm 31 mm 16 mm 25 mm
50215N-14-3/8 14 mm BSPP 3/8" 0.375" 9.5 mm 62.5 mm 29.5 mm 16 mm 20 mm
50215N-14-1/2 14 mm BSPP 1/2" 0.375" 9.5 mm 62.5 mm 31 mm 16 mm 25 mm
50215N-6-M12x1 6 mm BSPP M12 x 1 0.295" 7.5 mm 42 mm 22 mm 11 mm 16 mm
50215N-6-M12x1.25 6 mm BSPP M12 x 1.25 0.295" 7.5 mm 42 mm 22 mm 11 mm 16 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
