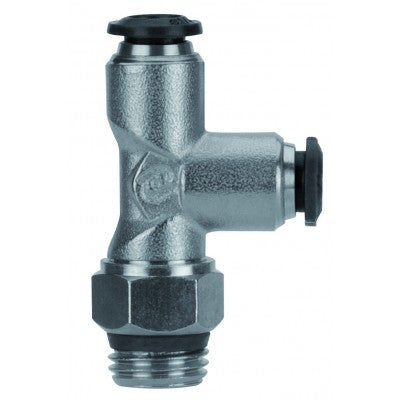

50222N-10-1/4" AIGNEP | 50N Series | Swivel Run Tee | 10mm Tube x 1/4" Swift-Fit Male | Pack of 10

50222N-10-1/4 by AIGNEP | 50N Series | Swivel Run | 10mm Tube x 1/4" Swift-Fit Male | Tee | Pack of 10

Save $36.47

$91.18

$91.18 - $91.18

$91.18

$54.71

$54.71 - $54.71

$54.71

Package Quantity: 10 ea

Specifications for Variant SKU: 50222N-10-1/4 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Tee
Ends Configuration:	10mm Push-to-Connect, 1/4in Male Swift-Fit, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Run Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: SWIFTFIT

Tube	A	B (IN)	B	L1	L2
50222N-4-1/8	4 mm	1/8"	0.216"	5.5 mm	14 mm	20 mm
50222N-4-1/4	4 mm	1/4"	0.276"	7 mm	21.5 mm	21.5 mm
50222N-5-1/8	5 mm	1/8"	0.216"	5.5 mm	20 mm	22 mm
50222N-6-1/8	6 mm	1/8"	0.216"	5.5 mm	21 mm	22 mm
50222N-6-1/4	6 mm	1/4"	0.276"	7 mm	21 mm	23.5 mm
50222N-8-1/8	8 mm	1/8"	0.216"	5.5 mm	22.5 mm	24 mm
50222N-8-1/4	8 mm	1/4"	0.276"	7 mm	22.5 mm	24 mm
50222N-8-3/8	8 mm	3/8"	0.295"	7.5 mm	22.5 mm	27 mm
50222N-8-1/2	8 mm	1/2"	0.374"	9 mm	22.5 mm	27 mm
50222N-10-1/4	10 mm	1/4"	0.276"	7 mm	26.5 mm	26 mm
50222N-10-3/8	10 mm	3/8"	0.295"	7.5 mm	26.5 mm	26 mm
50222N-10-1/2	10 mm	1/2"	0.374"	9 mm	26.5 mm	28.5 mm
50222N-12-3/8	12 mm	3/8"	0.295"	7.5 mm	31.5 mm	29.5 mm
50222N-12-1/2	12 mm	1/2"	0.374"	9 mm	31.5 mm	32 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
