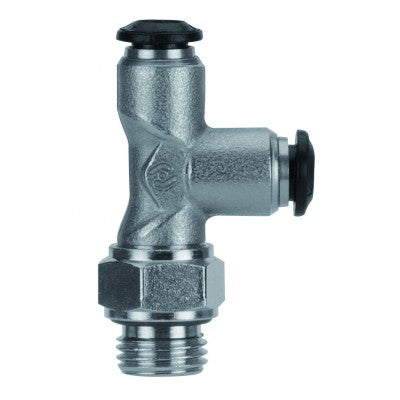

50225N-10-1/2" AIGNEP | 50N Series | Swivel Run Tee | 10mm Tube x 1/2" BSPP Male | Pack of 10
50225N-10-1/2 by AIGNEP | 50N Series | Swivel Run | 10mm Tube x 1/2" BSPP Male | Tee | Pack of 10
50225N-10-1/2" AIGNEP | 50N Series | Swivel Run Tee | 10mm Tube x 1/2" BSPP Male | Pack of 10

50225N-10-1/2 by AIGNEP | 50N Series | Swivel Run | 10mm Tube x 1/2" BSPP Male | Tee | Pack of 10

Save $40.29 Save $40.29
$100.72
$100.72 - $100.72
$100.72
$60.43
$60.43 - $60.43
$60.43

Package Quantity: 10 ea

Specifications for Variant SKU: 50225N-10-1/2 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Tee
Ends Configuration: 10mm Push-to-Connect, 1/2in Male BSPP, 10mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Run Tee - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP
Product Number Tube Thread Type A B (IN) B L1 L2 CH1 CH2
50225N-3-M5 3 mm BSPP M5 0.138" 3.5 mm 16.5 mm 17 mm 9 mm 8 mm
50225N-4-M5 4 mm BSPP M5 0.138" 3.5 mm 17 mm 18 mm 9 mm 8 mm
50225N-4-1/8 4 mm BSPP 1/8" 0.216" 5.5 mm 17 mm 18.5 mm 9 mm 13 mm
50225N-4-1/4 4 mm BSPP 1/4" 0.276" 7 mm 17 mm 20 mm 9 mm 16 mm
50225N-5-M5 5 mm BSPP M5 0.138" 3.5 mm 20 mm 20.5 mm 11 mm 11 mm
50225N-5-1/8 5 mm BSPP 1/8" 0.216" 5.5 mm 20 mm 20.5 mm 11 mm 13 mm
50225N-6-M5 6 mm BSPP M5 0.138" 3.5 mm 21 mm 20.5 mm 11 mm 11 mm
50225N-6-1/8 6 mm BSPP 1/8" 0.216" 5.5 mm 21 mm 20.5 mm 11 mm 13 mm
50225N-6-1/4 6 mm BSPP 1/4" 0.276" 7 mm 21 mm 22 mm 11 mm 16 mm
50225N-8-1/8 8 mm BSPP 1/8" 0.216" 5.5 mm 22.5 mm 22.5 mm 13 mm 13 mm
50225N-8-1/4 8 mm BSPP 1/4" 0.276" 7 mm 22.5 mm 23 mm 13 mm 16 mm
50225N-10-1/4 10 mm BSPP 1/4" 0.276" 7 mm 26.5 mm 27 mm 14 mm 16 mm
50225N-10-3/8 10 mm BSPP 3/8" 0.314" 8 mm 26.5 mm 26.5 mm 14 mm 20 mm
50225N-10-1/2 10 mm BSPP 1/2" 0.375" 9.5 mm 26.5 mm 28 mm 14 mm 25 mm
50225N-12-3/8 12 mm BSPP 3/8" 0.375" 9.5 mm 31.5 mm 29.5 mm 16 mm 20 mm
50225N-6-M12x1 6 mm BSPP M12 x 1 0.295" 7.5 mm 21 mm 22 mm 11 mm 16 mm
