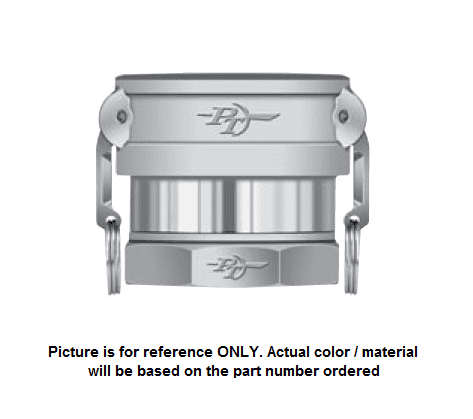

60215000 (50DSV) by PT-Coupling | 5" Swivel Coupler x 5" Female NPT | Aluminum | Viton Seal

60215000 (50DSV) by PT-Coupling | 5" Swivel Coupler x 5" Female NPT | Aluminum | Viton Seal

Save $53.07 Save $53.07
$477.59
$477.59 - $477.59
$477.59
$424.52
$424.52 - $424.52
$424.52
Specifications for Variant SKU: 60215000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 5in Female Cam & Groove, 5in Female NPT
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part DSV - 360° Swivel - Coupler x Female NPT Thread - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Available with U-cup Viton® or Buna Seals
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Coupler
Size		 Female NPT
Thread Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DSV 60211500 - 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
20DSV 60212000 - 2" 2" 7.54" 3.94" 3.10" 1.88" 250 PSI
25DSV 60212500 - 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DSV 60213000 60213100 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
40DSV 60214000 60214100 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI
50DSV 60215000 - 5" 5" 11.67" 7.57" 4.1" 4.5" 75 PSI
60DSV 60216000 - 6" 6" 16.26" 10.16" 4.40" 5.50" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
